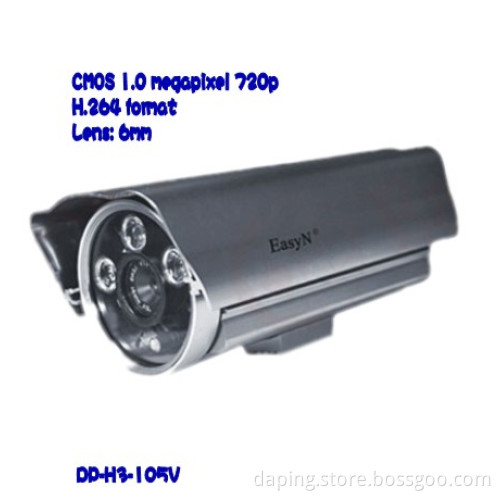

Outdoor magpixel H264 wireless box camera waterproof cctv camera

Model:H3-VH05

Features

Superiority

Support monitor via computer and most of intelligent cellphone on the market(such as Android ,Iphone cellphone

mobile software

Provide special software for the iPhone or android mobile phone

DDNS(free)

Built in free DDNS system,like http://demo.easyn.hk, 'demo' is serial code

CMS software

EasyN multi-window mangement software ,remote recording

System security

Supports three-level account, password, user multi-level authority management

Local memory

Support 32G TF card local memory,support alarm recording and picture memory,  Support EasyN NVR (Need customerization )

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Network

Network interface

RJ-45   10/100Mb   self-adaptable Ethernet slot

Protocol

Support HTTP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP

IP mode

Dynamic IP address, static IP address

Online visitor

Main stream support 5 visitors at the same time

Time stream support 6 visitors at the same time

Video

Compression format

H.264 main profile level 3,two- code stream output

Image sensor

CMOS 1000,000 pixel

Lens

Standard: 12mm

Frame rate

1-25fps

Resolution

720P(1280*720) ,(640*360),(320*180)

Image adjustment

Brightness, contrast, color saturation,chroma

WB, BLC

Auto

LUX

0.3LUX/F1.2

SNR

>48dB

Audio

Compression format

G.711/G.726

Input

Linear input / Microphone input

Output

1 channel linear output

PTZ

Motor

No

Rotation angle

No

Preset

No

PTZ Protocol

PELCO-D protocol      baud rate: 9600       address: 1

Nightvision

Filter switch

Built-in IR Cut,can auto-switch automatically, without color cast

Nightvision

Dot Matrix 3 LED lights      IR distance: 60m

Alarm

Input/output

1 channel RS485

Alarm detection

Motion detection

Detection area

Support 4 detection area (each area support different sensitivity)

Alarm notification

 Email notification,picture, save the recording and picture to tf card

Others

Shape material

Waterproof guns type, aluminum alloy material

Environment

Outdoors

Power supply

DC12V 2A

Operating temperature

-10~50°C

Operating humidity

10%~90%RH

Dimension

Item size :235x100x90mm   (L*W*H)

Package size:305x230x120mm (L*W*H)

Weight

Item weight:1221g  (Note:for real products )

Package weight:2115g

Accessories

Power adapter,CD,manual,warranty card,srews ,bracket ,antenna

System

System requirement

Microsoft WinXP,Vista ,win7, IE6.0,7.0,8.0,9.0, NET4.5,firefox,chrome
