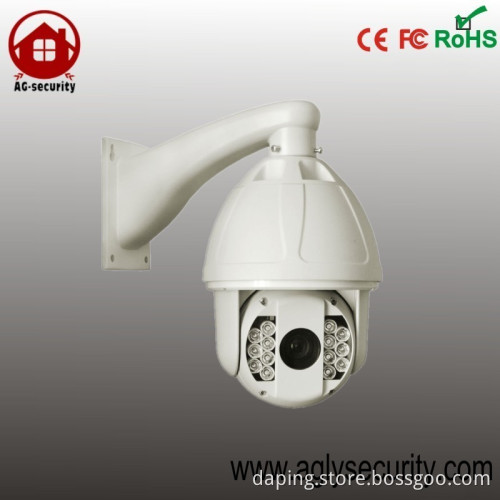

IR outdoor cctv camera 30X optical zoom high speed long distance zoom camera

Model  :H3-BEN7

Features

Superiority

Support monitor via cellphone or computer, certified by Microsoft activeX, no worry to be invaded by virus, support most of intelligent phone(such as Iphone, Android)

mobile software

Provide special software for the iPhone and android mobile phone

DDNS(free)

Built in free DDNS system, dedicated domain name and no need to apply the peanut shell bounded solve the problems of frequently offline.  like http://demo.easyn.hk,'demo' is serial code

CMS software

EasyN multi-window mangement software, remote record

System security

Supports three-level account, password, user multi-level authority management

Local memory

Support 4G TF card, support alarm recording and picture memory, Support EasyN NVR

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Network

Network interface

RJ45  10/100MB self-adaptable Ethernet slot

Protocol

HTTP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP

IP mode

Dynamic IP address, static IP address, PPPOE

Online visitor

Main stream support 5 visitors at the same time

Time stream support 6 visitors at the same time

Video

Compression format

H.264,two- code stream output

Image sensor

1/4"HD CMOS 480TVL

Lens

30 X optical zoom,auto-focus lens  (f=4.0~88mm)

Frame rate

1~25fps

Resolution

D1(704*576) ,CIF(352*288) ,QCIF(176*144)

Image adjustment

Brightness, contrast, saturation, Shutter adjustable

WB, BLC

Auto

LUX

0.01LUX/F1.6

SNR

>48dB

Audio

Compression format

G.726/G.711 format

Input

Linear input / Microphone input

Output

audio output

PTZ

Motor

Built-in motor control

Rotation angle

Horizontal:360°         vertical: 90°

Preset

No

Nightvision

Filter switch

Built-in IR Cut, can auto-switch automatically, without color cast

Nightvision

 14Φ5   LED lights, IR distance: ,100m

Alarm

Input/output

1 channel RS485

Alarm detection

Motion detection

Detection area

Support 4 detection areas (each area support different sensitivity)

Alarm notification

Email notification, FTP server, save the recording and picture to TFcard

Others

Shape material

aluminum shell, anti-interference, corrosion resistance, protection grade IP66

Environment

Outdoors

Power supply

DC12V 5A

Operating temperature

-10~50°C

Operating humidity

10%~90%

Dimension

Item size:240x240x330mm            (L*W*H)

Package size:300x290x370mm            (L*W*H)

Weight

Item weight:4.5KG  (Note: for real products)

Package weight:5KG

Accessories

Power adapter, CD, manual, screws ,bracket,screw

System

System requirement

Microsoft Win98 SE/ME/2000/XP,Vista  IE5.0, NET4.5,firefox,chrome etc.
