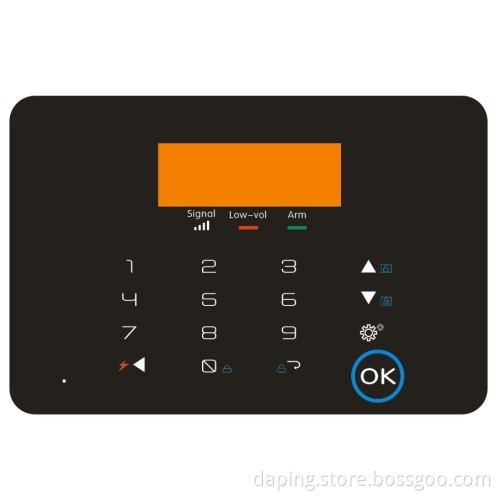

Dual-Band touch keypad wireless gsm home alarm systemwith Built-in siren

Specifications 1.Wireless touch gsm alarm system

2Touch Keypad,LCD display

3.Dual Network:GSM/PSTN auto switch

Dual-Band touch keypad wireless gsm home alarm systemwith Built-in siren DP-K5   Features: 1. Inbuilt touch keypad, blue backlight for keypad
2. Concise icons guided LCD display.
3. 15 wireless zones, every zones could connect 4 wireless detector. (2 wired zone optional)
4. Alarm report by: phone call and SMS
5. 5 telephone/mobile phone numbers can be preset
6. Arm/Disarm by: inbuilt keypad, remote,phone call, SMS, (wireless keypad optional)
7. AC/DC both available
8. Alert of weak power, no power
9. Monitoring and alert of door/window status (optional)
10. Electrical appliance control and scene control (optional)
11. "Black Box": 100 work history and 100 alarm history
12. Compatoble with CID Protocal (extra GSM SMS connector required)
13. GSM Dual-Band, (Quad-Band optional)        Technical specifications:

Power supply voltage	AC input : 100 ~ 230VAC DC output : 1A / 12VDC
the quiescent current	<50mA ( non-rechargeable state) Alarm current : <500mA
the working environment	Temperature : -10 to 50 ° C Humidity: < 80%
the back-up battery	lithium battery : 3.7V / 1200mAh
standby Length	24 hours ; charge time : 12 hours
GSM Frequency	850/900/1800 / 1900MHZ
GSM transmit power	2W
Wireless Frequency	433 / 868 MHZ(optional),1527 learning code 2262
the host size	168 × 112 × 26 ( mm)
Package size:	260 ×210 ×110 (mm)
