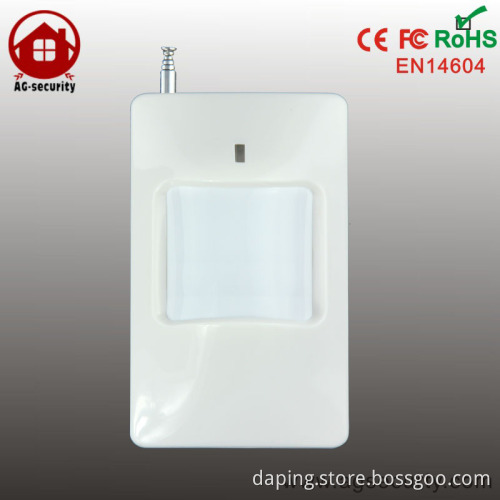

Wireless PIR Motion Sensor Passive Infrared Detector for wireless alarm

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.Wireless PIR Motion Sensor Passive Infrared Detector

2. 20m transmit distance in the open air

3. 315MHz and 433MHz

Wireless PIR Motion Sensor Passive Infrared Detector for wireless alarm
Features: 1. MCU processing adopted 2. Automatically identify valve control 3.Wireless transmitting digital signal 4. Low power indication 5. Automatic temperature compensation 6. SMT adopted, anti-RFI & anti-EMI 7.Low power consumption, long battery life 8 Pulse count optional Specifications:

Dimentsion	107×59×39.5(mm)
Operating voltage	3VDC(2AAbattery)
Static current	≤25uA
Alarm current	≤15mA
Detecting distance	12m
Detecting angel	110°
Enviroment temp	-10°C~+50°C
Transmitting freq	433/315MHZ
Transmitting distance	200m(in open area)
Installation height	about 2.2m
Installation mode	wall mounted
Material	fireproof ABS housing
Weight	156g
