IP65 Waterproof SMD5730 LED Module 12V for Light Box

IP65 Waterproof SMD5730 LED Module 12V for Light Box

$0.45

1000-4999 piece
$0.39

5000-9999 piece
$0.36

≥10000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union,T/T,Paypal

Product Description

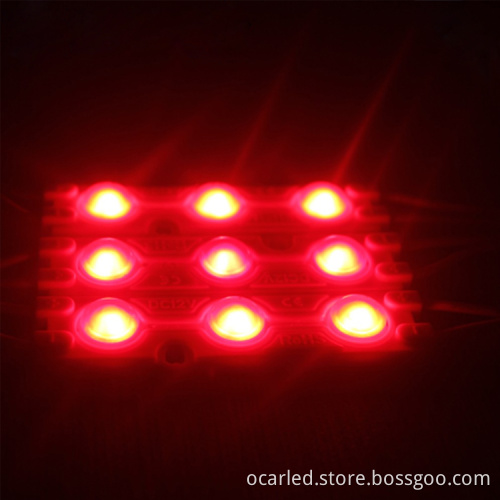

Super Bright LED Injection Module 12V IP65

Features

What is the features of our SMD5730 LED Module?

High Power 5730SMD LEDs
With a low power consumption and high lumen value,a long life-span, maintenance free.
Plastic injection technique for outer cover, this design structure offer good heat transfer.
Saving energy 70% than traditional neon,and more bright.
IP Rate: IP65
Reliable and safe with DC 12V low voltage input
Viewing angle: 160-170°
1 years warranty

Technical Parameters

What is the specifications of our SMD5730 Module?

Single Color LED Module 2 SMD LEDs

Part Number	Color	Dimension	LED QTY	Voltage	Power	Waterproof	Lumen
Part Number	Color	mm	PCS	Voltage	PCS	Waterproof	PCS
CR-MD-5730-2	Red	5517.56.5	2	12	1.2W	IP65	13
	Yellow	5517.56.5	2	12	1.2W	IP65	13
	Bule	5517.56.5	2	12	1.2W	IP65	13
	Green	5517.56.5	2	12	1.2W	IP65	19
	White	5517.56.5	2	12	1.2W	IP65	50-55
	Warm white	5517.56.5	2	12	1.2W	IP65	45-50

Single Color LED Module 3 SMD LEDs

Part Number	Color	Dimension	LED QTY	Voltage	Power	Waterproof	Lumen
Part Number	Color	mm	PCS	Voltage	PCS	Waterproof	PCS
CR-MD-5730-3	Red	6617.56.5	3	12	1.2W	IP65	19
	Yellow	6617.56.5	3	12	1.2W	IP65	19
	Bule	6617.56.5	3	12	1.2W	IP65	19
	Green	6617.56.5	3	12	1.2W	IP65	28
	White	6617.56.5	3	12	1.2W	IP65	70-85
	Warm white	6617.56.5	3	12	1.2W	IP65	55-60

Single Color LED Module 4 SMD LEDs

Part Number	Color	Dimension	LED QTY	Voltage	Power	Waterproof	Lumen
Part Number	Color	mm	PCS	Voltage	PCS	Waterproof	PCS
CR-MD-5730-4	Red	37377.5	4	12	2.2W	IP65	25
	Yellow	37377.5	4	12	2.2W	IP65	25
	Bule	37377.5	4	12	2.2W	IP65	25
	Green	37377.5	4	12	2.2W	IP65	35
	White	37377.5	4	12	2.2W	IP65	130-140
	Warm white	37377.5	4	12	2.2W	IP65	100-120

Application

What is the applications of our SMD5730 LED Module?

These single-color LED light modules provide consistent illumination for channel letters, sign lighting, under-cabinet lighting, store window lighting, display case lighting, and more!

IP65 Waterproof Injection SMD5730 LED Module 12V for Light Box
