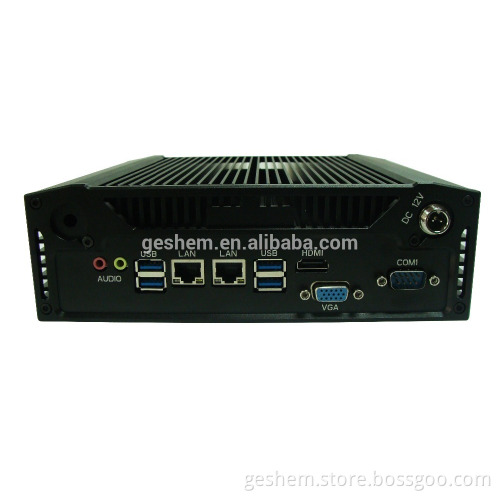

Geshem aliuminum box PC-GS5067H ubuntu Industrial pc type 12v5A mini pc i7 with 4gb ram 2 ethernet mini pc
- Delivery Time:
- 3 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | Guangdong, China (Mainland) |
---|



Performance | Chipset | Intel® core 4th or 5th Gen I3/I5/I7 CPU |
RAM | 4GB DDRIII on board, 8GB optional | |
Hardware Monitoring | Voltage & CPU Temperature Monitoring | |
Watchdog | 0-255 sec By Software | |
Storage | HDD:500GB 2.5' SSD : (Optional) | |
Power | Power in | 100~240VAC/50~60Hz (Adapter) 12VDC/5A |
Power Dissipation | 16W (Standby) 19W (Running MaxPower 100% | |
I/O | USB | 4 *USB3.0 +2*USB 2.0 |
COM | 6*RS2323(1-2*RS422/Rs485 optional) | |
Ethernet | 2* intel I211 GbE | |
Audio | 1*Line out,1*Mic in | |
Display | 1*VGA,1*HDMI | |
Expansion | 1*mini PCIe | |
GPIO | 4in/4out | |
O/S | O/S | Windows 7/8 Linux |
Environmental | Anti-vibration | 5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration |
Anti-shock | 10g acceleration, 11ms duration | |
Reliability | MTBF≥50000h; MTTR≤0.5h | |
Operating Temp | -20℃~60℃ (with air flow) | |
Storage Temp | -30℃ ~70℃ | |
Operating Humidity | 95% @40℃, non-condensing | |
Mechanical | Dimensions | 212.4mm *150mm *71.6mm |
Material | High-strength and elegant Al-alloy, Fanless Design | |
Weight | 2.0Kg/3.0Kg | |
Color | Silver/Black |










Tel:86-0755 86166629 Fax:86-0755 86728016 Web: www.geshemtech.com
