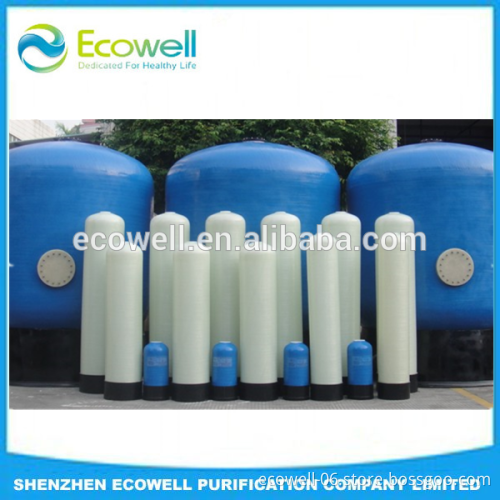

FRP water pressure tank / fiberglass pressure tank

FRP water pressure tank /  fiberglass pressure tank :   Product description:  using high performance resin and glass fiber winding, lined with polyethylene materials,  compared with steel container, the weight can reduce by 60%, and longer service life,  high strength, corrosion resistance, low price, transportation is easy, beautiful appearance,  convenient installation, etc.Lined with polyethylene materials, make the tank has reached the  food grade requirements. Service Conditions:  *work pressure ≤0.6 MPa (150 psi) ,  *working temperature ≤49 °C ,  *maximum vacuum 127 mm Hg (5 "Hg)  *Fatigue Tests: 150000 times *Life Cycle: 15 years *working medium: water, acid, alkali and other chemical corrosive liquid.  open :   The areas of application:  water supply and wastewater treatment industry, light industry, chemical industry,  industrial boiler, electronics, petrochemical system. Specification:

Model No.	Specification  (mm)	Top Opening	Bottom Opening	Recommended flux (T/H)
818	200×450	2.5"Thread	N/A	0.2~0.3
835	200×890	2.5"Thread	N/A	0.5
844	200×1100	2.5"Thread	N/A	0.5
1035	250×890	2.5"Thread	N/A	0.5
1054	250×1450	2.5"Thread	N/A	0.5~1
1252	300×1400	2.5"Thread	N/A	0.5~2
1265	300×1650	2.5"Thread	N/A	2.0~2.5
1454	350×1450	2.5"Thread	N/A	2.5~3.0
1465	350×1650	2.5"Thread	N/A	2.5~3.5
1665	400×1650	2.5"Thread	N/A	2.0~4.0
1665	460×1650	4"Thread	N/A	2.0-4.0
2069	500×1750	4"Thread	N/A	5-6
2075	500×1900	4"Thread	4"Thread	5-6
2475	600×1900	4"Thread	4"Thread	6-8
3075	750×1900	4"Thread	4"Thread	8-10
3675	900×1900	4"Thread	4"Thread	13-15
4075	1000×1950	4"Thread	4"Thread	15-20
4087	1000×2200	4"Thread	4"Thread	25-30
4890	1200×2500	4"Thread	4"Thread	25-35
8096	2000×2600	6"Flange	6"Flange	80-100
