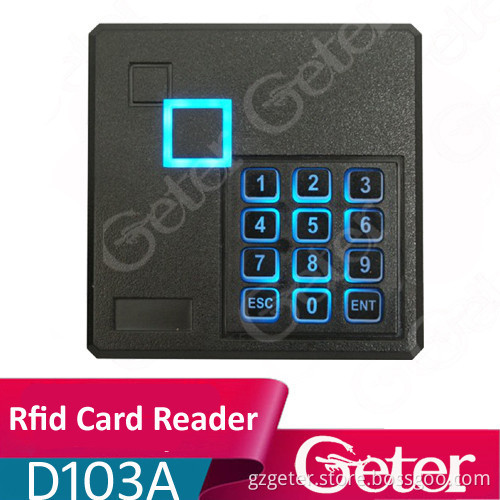

Wiegand 26 or wiegand 34 PIN Keyboard Card Reader for access control

Wiegand 26 or wiegand 34 PIN Keyboard Card Reader for access control   Product Description Specification *Less than 0.2 second Response Speed *5-10cm Proximity Range * Support EM-ID, M1card, 15693card, 14443A or 14443B Card *Ambient Temperature:-25℃ to 75℃ *Ambient Humidity: 10%-90% *Built-in Antenna *Built-in LED (Double Color LED) *Built-in Loud Speaker (Buzzer) *DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current *90 Meters Communication Distance *Real Time Data Transfer *With Water-Proof Function *Audiovisual indication: When a registered card is presented to the reader, the re LED flashes green and the beep sounds. *Size:86*86*18(mm) *Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)
Packaging & Shipping

Qty/Box	Size/ Box	Weigth/Box
1 PC	15*14*6CM	0.45 KG
Qty/Carton	Size/Carton	Weight/Carton
20PCS	31*30*30CM	9.5 KG
