Hanvon face recognization time attendance and access control

Product Description   Face ID is industry first embedded facial recognition system with leading “Dual Sensor™” Facial Recognition Algorithm, which designed for application like physical access control and time attendance, identity management and so on.

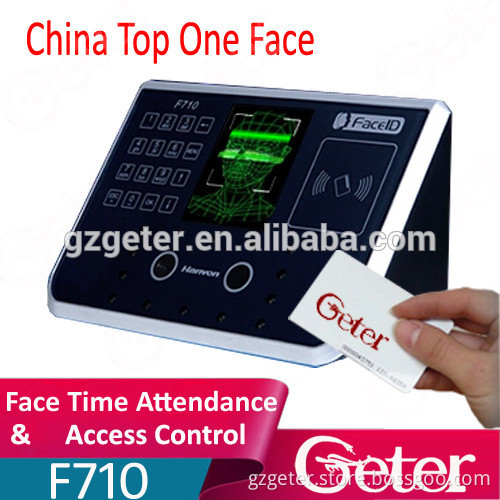

Time and access F710
F710 is an embedded facial recognition system with leading “Dual Sensor™” Facial Recognition Algorithm, which applied for time attendance and access control application. Its classic slope design is good for commercial market like Enterprise, Bank, building automation and so on.   Features:   Embedded facial recognition system:
• Adopt US advanced DSP technology keeps processing and matching right on the device
• Standalone application as Time attendance, Access control, Identity management

Accurate and Fast Identification:
• Industrial Leading “Dual Sensor” Facial Recognition Algorithm, FAR<0.001%, FRR<1%
• 1:Many up to 500 users less than 1 second

Multi Authentication:
• System can work with Face, ID+Face, Card+Face,Card,Card+Photo

Large user and log capacity:
• User capacity up to 500 for 1:N matching
• Over 150,000 logs and security image 70,000

User friendly design:
• 3.5 inch color screen for face positioning
• Contactless authentication for the ultimate in hygienic
• voice prompt

Flexible interfaces and Data Management:
• Standard TCP/IP and USB Host
• Built in relay
• Wiegand output makes system compatible with different access control panel
• User self-inquiry,Date Auto-uploading to defined server

Reliable performance under different environments:
• Different source-light Technology
• The system can work in different light condition even in the dark
• Over 2 years market testing

High Usability and Security:
• Failure to enroll and acquire rate is less than 0.0001%,everyone can use this technology
• Incident trackable for security with photo
• More data points matched than fingerprint enable more accurate   Technical Specifications

	F710
Processor	TI DM CPU 600MHz
User Capacity	500 Users 1:N Matching, 30,000 Users 1:1 Matching
Record Capacity	150,000 Records
Recognition Algorithm	Dual Sensor™ V3.0
Sensor	Specialized double sensor
Card Recognition	Standard EM,Optional Mifare
Authentication Method	Face,ID+Face,Card+Face,Card,Card+Photo
Authentication Speed	Less than 1 Second (500 Users) on 1:N Matching
Communication Method	Standard TCP/IP,USB Host
Attendance	Workcode,Daylight saving
Date Management	User-inquiry,Auto-uploading
Security Image Capacity	2GB SD Card 70,000 Images
Security Alarm	Tamper Alarm
Access Control	Built-in relay
Wiegand in&out	User-defined format output 26/34
Keyboard	4*4 Touch Keypad
LCD	3.5 inch TFT Color Screen, 65,000 Bright Color, 320*240 Resolution
Power	12V DC
Working Distance	30cm-80cm
Working Temperature	0℃-40℃
Working Humidity	20% - 80%
Size	200*95*115mm
Weight	505g
Certification	CE FCC Class A ROHS

  Product Overviews       Communication         Free software     Packaging & Shipping

Qty/Box	Size/ Box	Weigth/Box
1 PC	25*17*7CM	0.76 KG
Qty/Carton	Size/Carton	Weight/Carton
10PCS	38*35*28CM	8 KG
