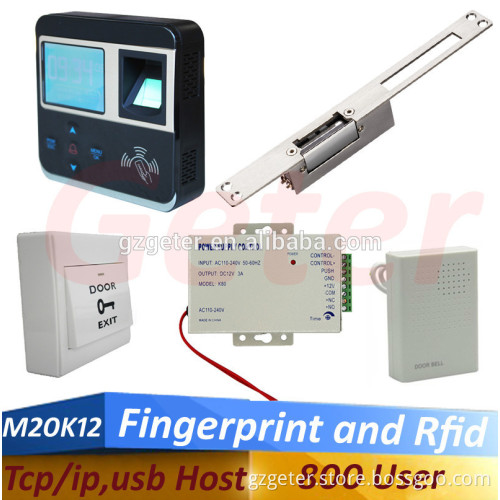

Fingerprint Door Access Control System Kits DIY Package for Wood Dooe Fail Secure Strike Lock




Model	M20
LCD Screen	2.4 inch TFT (320*240)   Color Screen
Fingerprint Sensor Resolution	500DPI (Optical sensor)
Hardware Platform	ZDC2911
Algorithm Version	RSFv5.1
CPU	ARM926EJ CPU, Running Frequency: 200MHZ
Communication	TCP/IP, RS485, USB Memory Disk
User Capacity	800
Records Capacity	50,000
Software OS	XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time	< 1 S
Authentication Method	Fingerprint/ RFID Card (125Khz, EM4100)
Language	Chinese / English / Spanish/Portuguese/ German (could customize others)
Bell	Built-in timing bell(can connect to external timing bell)
Access Control Interface	Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor
Professional Access Function	Open door by multilevel verification, anti-pass back
Power	DC 12V/2A
FRR	<1%
FAR	<0.00001%
Operating Mode	Off-line/On-line
Authentication Mode	1:1, 1:N
Operating environment	Operating Temp: 0°C-50°C, Humidity:80%

    Product Overviews   *   Can reduce the load of access controller, save wiring to reduce the hidden trouble *   Set NC / NO outputs, can control various types of electric locks *   Based delay control circuit, lock time can be in 0-15 seconds *   Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line of *   The circuit board has remote control port. *   Operative device: E/M Lock, Access Controller, Exit Push Button *    Input Voltage: AC 110~220V  50~60Hz *    Output Voltage: DC 12V 3A *    Outer Dimensions: 117 x 68 x 32mm

Product Parameter	Parameter Description
Lock Size	250Lx25Wx31H(mm)
Strike Structure	Stainless Steel
Holding Force	500kg
Voltage	DC12V
Current	200mA(YS-132NO);
Feature	Fail Secure(YS-132NO);
Suitable For:	Wooden Door,Metal Door,PVC Door
Surface Temperature	Within +20
Suitable Temperature	-10~+55(14-131F)
Operating Humidity	0~90%(non-condensing)
Face plate Housing	Painted Steel
Function	Built-out MOV

    Color: White Material: fireproof resin Size (cm): 8.6(L) x 8.6(W) Current: 3A, 36V DC Contact output: NC\COM Applied temperature: -10 degree~55 degree Applied humidity: 0%~95% (relative humidity) White fireproof resin shell, safe and durable Looks simple, comfortable and beautiful Undergoing 50,000 times continuous clicking test, very durable Good to touch, easy to operate and us
Activates electric strike, magnetic lock or other electric lock via access control keypad Works with most electronics access control keypads, door phones with access control keypads Flush mounting The door control switch button is widely used in the entrance guard system, which has gone through 50,000 times continuous clicking tests, very durable   Communication   Packaging & Shipping     Company Information
