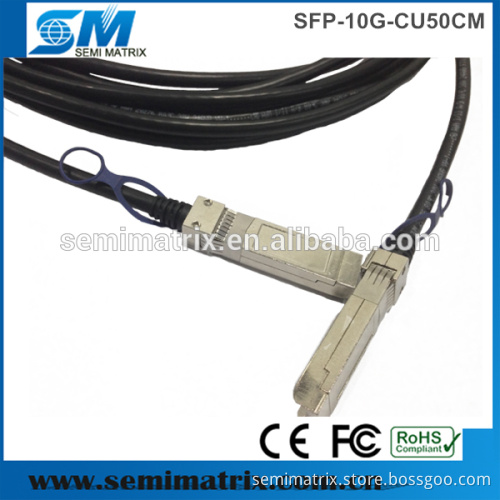

0.5 meter length 10G SFP+ Passive Twinax Copper Direct Attach Cable

Specifications -10G SFP+ Cable

-Data rates backward compatible to 1G

-Direct Attach, Passive

-Twinax Copper, 0.5 meter

-Optional lengths

0.5 Meter Length 10G SFP+ Passive Twinax Copper Direct Attach Cable    Product Description   SFP+ Copper Twinax direct-attach cables are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. They supports 10 Gigabit Ethernet, 10 Fibre Channel, and other industry standards.
We offer different lengths for the SFP+ Copper Twinax Direct Attach cables.   Main Features:   * Support for multi-gigabit data rates up to 10Gb/s
* Data rates backward compatible to 1 Gb/s
* Hot-pluggable SFP 20PIN footprint
* Improved Pluggable Form Factor(IPF)
* Compliant for enhanced EMI/EMC performance
* Compatible to SFP+ MSA
* Compatible to SFF-8431,SFF-8432
* Temperature Range: 0~ 70 °C
* RoHS Compatible    * High density connections between networking equipment    * 1G/2G/4G/8G Fiber Channel   Application:   * 10Gigabit Ethernet

* High capacity I/O in Storage Area Networks, Network Attached Storage, Storage Servers

* Data center cabling infrastructure

* Switched fabric I/O
* High density connections between networking equipment

* 1G/2G/4G/8G Fiber Channel     Compatibility Our Optical Transceiver module and cable can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required.   We supply the suitable Optical Solution according to your requirements, and design  the label and packaging as you need.   Welcome any inquiry of customized products and service.     Detailed Images              Ordering Information

Part Number	Product Description	Remarks
10G SFP+ Cable,  Passive
SFP-10G-CU50CM	10G SFP+ Copper Twinax cable 0.5 Meter, passive
SFP-10G-CU1M	10G SFP+ Copper Twinax cable 1 Meter, passive
SFP-10G-CU3M	10G SFP+ Copper Twinax cable 3 Meters, passive
SFP-10G-CU5M	10G SFP+ Copper Twinax cable 5 Meters, passive
SFP-10G-CU7M	10G SFP+ Copper Twinax cable 7 Meters, passive
SFP-10G-CU10M	10G SFP+ Copper Twinax cable 10 Meters, passive
SFP-10G-CU xx M	10G SFP+ Copper Twinax cable xx Meters, passive	xx means the specified length you need
10G  SFP+ Cable, Active
SFP-10G-ACU5M	10G SFP+ Copper Twinax cable 5 Meters, active
SFP-10G-ACU7M	10G SFP+ Copper Twinax cable 7 Meters, active
SFP-10G-ACU10M	10G SFP+ Copper Twinax cable 10 Meters, active
SFP-10G-ACU xx M	10G SFP+ Copper Twinax cable xx Meters, active	xx means the specified length you need

      Payment & Warranty We offer 3 years warranty to our products.
