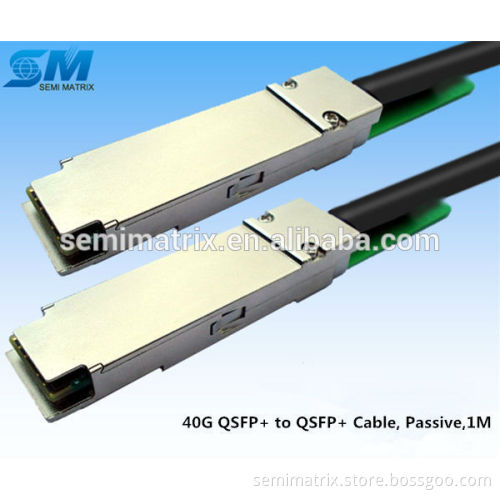

1 meter length 40G QSFP+ Direct Attach Passive Copper Cable
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -QSFP+ to QSFP+ Cable
-Data rate: 40 Gb/s - 4 x 10Gb/s
-Direct Attach copper, passive
-optional length 1-10M
-RoHS Compliant
1 meter length 40G QSFP+ Direct Attach Passive Copper Cable Product Description QSFP to QSFP copper direct-attach 40GBASE-CR4 cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP ports of switches within racks and across adjacent racks. We currently offers passive cables in lengths of 1 to 10 meters and active cables in lengths of 1 to 15 meters. Main Features: * QSFP+ conforms to the Small Form Factor SFF-8436
* 4-Channel Full-Duplex Passive Copper Cable Transceiver
* Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
* Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
* Copper link length up to 5m (passive limiting)
* High-Density QSFP 38-PIN Connector
* Power Supply :+3.3V
* Low power consumption: 0.02 W (typ.)
* I2C based two-wire serial interface for EEPROM signature which can be customized
* Temperature Range: 0~ 70 °C Application: * 10 Gigabit Ethernet
* 40 Gigabit Ethernet
* InfiniBand4x SDR, DDR, QDR
* 2, 4, 8, 10 Gigabit Fiber Channel
* Fiber Channel over Ethernet
* SAS,Servers,Hubs,Switches,Routers Compatibility Our Optical Transceiver module and cable can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required. We supply the suitable Optical Solution according to your requirements, and design the label and packaging as you need. Welcome any inquiry of customized products and service. Detailed Images
Payment & Warranty We offer 3 years warranty to our products.
Packaging & Shipping
Ordering Information
-Data rate: 40 Gb/s - 4 x 10Gb/s
-Direct Attach copper, passive
-optional length 1-10M
-RoHS Compliant
1 meter length 40G QSFP+ Direct Attach Passive Copper Cable Product Description QSFP to QSFP copper direct-attach 40GBASE-CR4 cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP ports of switches within racks and across adjacent racks. We currently offers passive cables in lengths of 1 to 10 meters and active cables in lengths of 1 to 15 meters. Main Features: * QSFP+ conforms to the Small Form Factor SFF-8436
* 4-Channel Full-Duplex Passive Copper Cable Transceiver
* Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
* Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
* Copper link length up to 5m (passive limiting)
* High-Density QSFP 38-PIN Connector
* Power Supply :+3.3V
* Low power consumption: 0.02 W (typ.)
* I2C based two-wire serial interface for EEPROM signature which can be customized
* Temperature Range: 0~ 70 °C Application: * 10 Gigabit Ethernet
* 40 Gigabit Ethernet
* InfiniBand4x SDR, DDR, QDR
* 2, 4, 8, 10 Gigabit Fiber Channel
* Fiber Channel over Ethernet
* SAS,Servers,Hubs,Switches,Routers Compatibility Our Optical Transceiver module and cable can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required. We supply the suitable Optical Solution according to your requirements, and design the label and packaging as you need. Welcome any inquiry of customized products and service. Detailed Images Payment & Warranty We offer 3 years warranty to our products. Packaging & Shipping Ordering Information | QSFP Direct-Attach Copper Cable, Passive | |
| 40GBASE-CR4 QSFP direct-attach copper cable, 1-meter, passive | QSFP-40G-CU1M |
| 40GBASE-CR4 QSFP direct-attach copper cable, 3-meter, passive | QSFP-40G-CU3M |
| 40GBASE-CR4 QSFP direct-attach copper cable, 5-meter, passive | QSFP-40G-CU5M |
| 40GBASE-CR4 QSFP direct-attach copper cable, xx-meter, passive | QSFP-40G-Cu xx M |
| xx = 1 ~ 10, M = meter | |
| QSFP Direct-Attach Copper Cable,Active | |
| 40GBASE-CR4 QSFP direct-attach copper cable, 1-meter, active | QSFP-40G-ACU1M |
| 40GBASE-CR4 QSFP direct-attach copper cable, 7-meter, active | QSFP-40G-ACU7M |
| 40GBASE-CR4 QSFP direct-attach copper cable, 10-meter, active | QSFP-40G-ACU10M |
| 40GBASE-CR4 QSFP direct-attach copper cable, xx-meter, active | QSFP-40G-ACU xx M |
| xx = 1 ~ 15, M = meter | |
