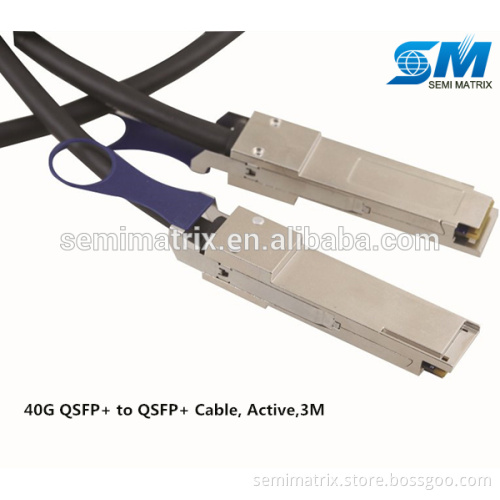

3 meter length 40G QSFP+ Direct Attach Active Copper Cable

Specifications -QSFP+ to QSFP+ Cable

-Data rate: 40 Gb/s - 4 x 10Gb/s

-Direct Attach copper, active

-optional length 1-15M

-RoHS Compliant

3 Meter length 40G QSFP+ Direct Attach Active Copper Cable   Product Description   QSFP to QSFP copper direct-attach 40GBASE-CR4 cables  are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP ports of  switches within racks and across adjacent racks.   We currently offers passive cables in lengths of 1 to 10 meters and active cables in lengths of 1 to 15 meters.   Main Features:   * QSFP+ conforms to the Small Form Factor SFF-8436
* 4-Channel Full-Duplex active Copper Cable Transceiver
* Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
* Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
* Copper link length up to 15m (active limiting)
* High-Density QSFP 38-PIN Connector
* Power Supply :+3.3V   * Power Consumption:<0.8W
*  Low crosstalk   * I2C based two-wire serial interface for EEPROM signature which can be customized
* Temperature Range: 0~ 70 °C   Application:   * 10 Gigabit Ethernet
* 40 Gigabit Ethernet
* InfiniBand4x SDR, DDR, QDR
* 2, 4, 8, 10 Gigabit Fiber Channel
* Fiber Channel over Ethernet
* SAS,Servers,Hubs,Switches,Routers     Standards Compliance:
* IEEE 802.3ba
* SFF-8436
* InfiniBand
* QSFP+ MSA
* RoHS Compliant     Compatibility Our Optical Transceiver module and cable can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required.   We supply the suitable Optical Solution according to your requirements, and design  the label and packaging as you need.   Welcome any inquiry of customized products and service.     Detailed Images          Payment & Warranty We offer 3 years warranty to our products.       Packaging & Shipping     Ordering Information

QSFP Direct-Attach Copper Cable, Passive
40GBASE-CR4 QSFP direct-attach copper cable, 1-meter, passive	QSFP-40G-CU1M
40GBASE-CR4 QSFP direct-attach copper cable, 3-meter, passive	QSFP-40G-CU3M
40GBASE-CR4 QSFP direct-attach copper cable, 5-meter, passive	QSFP-40G-CU5M
40GBASE-CR4 QSFP direct-attach copper cable, xx-meter, passive	QSFP-40G-Cu xx M
xx = 1 ~ 10,  M = meter
QSFP Direct-Attach Copper Cable,Active
40GBASE-CR4 QSFP direct-attach copper cable, 1-meter, active	QSFP-40G-ACU1M
40GBASE-CR4 QSFP direct-attach copper cable, 7-meter, active	QSFP-40G-ACU7M
40GBASE-CR4 QSFP direct-attach copper cable, 10-meter, active	QSFP-40G-ACU10M
40GBASE-CR4 QSFP direct-attach copper cable, xx-meter, active	QSFP-40G-ACU xx M
xx = 1 ~ 15,  M = meter
