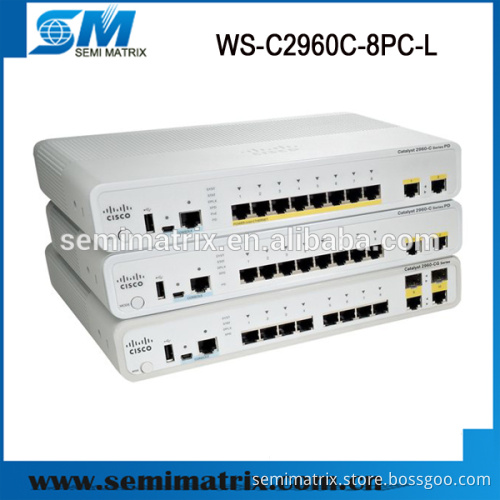

Catalyst 2960C Series Campus LAN Compact Switch WS-C2960C-8PC-L

Specifications -WS-C2960C-8PC-L

-Desktop 1U

-2960C POE Switch 8 FE

-8x 10/100 POE, 2 x SFP , LAN Base

-Up to 60-80% discount off

Catalyst 2960C Series Campus LAN Compact Switch  WS-C2960C-8PC-L   Product Description   Product Overview
Cisco Catalyst compact switches  easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet.   These attractive, small form-factor Gigabit and Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor and in classrooms, hotels, and factories and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging   Cisco Catalyst 2960-C and 3560-C Series Compact Switches highlights:   1. Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet
2. Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints
3. Power over Ethernet (PoE) pass-through enables the compact switch to draw power from the wiring closet and pass it to end devices (selected models)
4.Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging
5. Easy to deploy, manage and extend the network loop free
6. Enhanced limited lifetime hardware warranty         Specifications    WS-C2960C-8PC-L

GENERAL
Device Type	Switch - 8 ports - Managed
Enclosure Type	Desktop, rack-mountable, wall-mountable - 1U
Subtype	Fast Ethernet
Ports	8 x 10/100 (PoE) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
Performance	Forwarding performance : 10 Gbps
Capacity	Virtual interfaces (VLANs) : 255
Jumbo Frame Support	9018
Routing Protocol	RIP-1, RIP-2
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
RAM	128 MB
Flash Memory	64 MB
Status Indicators	Port status, link activity, system
EXPANSION / CONNECTIVITY
Interfaces	2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
	8 x 10Base-T/100Base-TX - RJ-45 - PoE
	1 x console - mini-USB Type B - management
	1 x RS-232 - RJ-45 - management
	2 x SFP (mini-GBIC)
	1 x USB - Type A
POWER
Power Device	Internal power supply
Voltage Required	AC 120/230 V ( 50/60 Hz )
MISCELLANEOUS
MTBF	373,635 hours
Compliant Standards	GOST, CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943
SOFTWARE / SYSTEM REQUIREMENTS
Software Included	Cisco IOS LAN Base
DIMENSIONS & WEIGHT
Width	26.9 cm
Depth	23.8 cm
Height	4.4 cm
Weight	1.86 kg
MANUFACTURER WARRANTY
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - replacement - lifetime - response time: next business day
	Limited warranty - power supply - 5 years
ENVIRONMENTAL PARAMETERS
Min Operating Temperature	-5 °C
Max Operating Temperature	40 °C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-25 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 95% (non-condensing)

         Payment & Warranty We offer 3 years warranty to our products.             Ordering Information   Ordering Information for Cisco Catalyst 3560-C and 2960-C Series Compact Switches

Cisco Catalyst 3560-C Compact Switches
WS-C3560CG-8TC-S	3560C Switch 8 GE, 2 x Dual Purpose Uplink, IP Base
WS-C3560CG-8PC-S	3560C Switch 8 GE PoE+, 2 x Dual Purpose, IP Base
WS-C3560CPD-8PT-S	3560C PD PSE Switch 8 GE PoE, 2 x 1G Copper Uplink, IP Base
WS-C3560C-8PC-S	3560C Switch 8 FE PoE+, 2 x Dual Purpose Uplink, IP Base
WS-C3560C-12PC-S	3560C Switch 12 FE PoE+, 2 x Dual Purpose Uplink, IP Base
Cisco Catalyst 2960-C Compact Switches
WS-C2960CPD-8TT-L	2960C PD Switch 8 FE, 2 x 1G, PoE+ LAN Base
WS-C2960CPD-8PT-L	2960C PD PSE Switch 8 FE PoE, 2 x 1G, PoE+ LAN Base
WS-C2960CG-8TC-L	2960C Switch 8 GE, 2 x Dual Purpose Uplink, LAN Base
WS-C2960C-8TC-L	2960C Switch 8 FE, 2 x Dual Purpose Uplink, LAN Base
WS-C2960C-8TC-S	2960C Switch 8 FE, 2 x Dual Purpose Uplink, LAN Lite
WS-C2960C-8PC-L	2960C PoE Switch 8 FE PoE, 2 x Dual Purpose Uplink, LAN Base
WS-C2960C-12PC-L	2960C PoE Switch 12 FE PoE, 2 x Dual Purpose Uplink, LAN Base

    Packaging & Shipping   Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.
