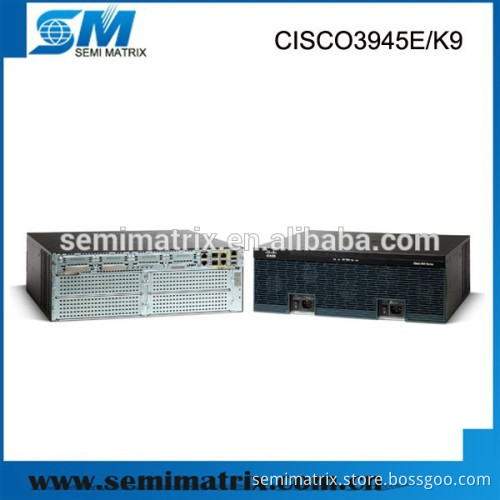

3900 Series Integrated Services Router CISCO3945E/K9

Specifications -router CISCO3945E/K9

-Desktop, 3U

-wired

-IOS IP Base

-1 year warranty

Cisco 3945E Series Integrated Services Routers CISCO3945E/K9   Product Description   Product Overview   The Cisco 3900 Series builds on the best-in-class offering of the existing Cisco 3800 Series Integrated Services Routers by now offering four platforms : the Cisco 3945E, Cisco 3925E, Cisco 3945, and Cisco 3925 Integrated Services Routers.   The Cisco 3900 Series offers embedded hardware encryption acceleration, voice- and video-capable DSP slots, optional firewall, intrusion prevention, call processing, voicemail, and application services. In addition, the platforms support the industry’s widest range of wired and wireless connectivity options such as T1/E1, T3/E3, xDSL, copper, and fiber Gigabit Ethernet.   The Cisco 3900 Series offers superior performance and flexibility for flexible network deployments from small business offices to large enterprise offices - all while providing industry-leading investment protection.   Specifications CISCO3945E/K9

GENERAL
Device Type	Router
Enclosure Type	Desktop, rack-mountable - modular - 3U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity	Cisco Unified Communications Manager Express sessions : 450
	Cisco Unified SRST sessions : 1500
Network / Transport Protocol	IPSec, PPPoE, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol	SNMP, RMON
Encryption Algorithm	SSL
Features	Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag , CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438
RAM	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Status Indicators	Link activity, power
EXPANSION / CONNECTIVITY
Interfaces	4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
	Management : 1 x console - RJ-45
	Management : 1 x console - mini-USB Type B
	Serial : 1 x auxiliary - RJ-45
	USB 2.0 : 2 x 4 PIN USB Type A
	2 x SFP (mini-GBIC)
Expansion Slots	3 (total) / 3 (free) x EHWIC
	3 (total) / 3 (free) x PVDM
	2 (total) / 1 (free) x CompactFlash
	1 (total) / 1 (free) x expansion slot
	4 (total) / 4 (free) x service module (SM)
POWER
Power Device	Internal power supply
Voltage Required	AC 120/230 V ( 47/63 Hz )
MISCELLANEOUS
Rack Mounting Kit	Included
SOFTWARE / SYSTEM REQUIREMENTS
OS Provided	Cisco IOS IP Base
DIMENSIONS & WEIGHT
Width	47.6 cm
Depth	43.8 cm
Height	13.3 cm
Weight	17.7 kg
MANUFACTURER WARRANTY
Service & Support	90 days warranty
Service & Support Details	Limited warranty - advance parts replacement - 90 days - response time: 10 days
ENVIRONMENTAL PARAMETERS
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	5 - 85%

          Payment & Warranty We offer 3 years warranty to our products.           Packaging & Shipping   Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.                 Ordering Information     Ordering Information for Cisco 3900 Series Routers

Product Name	Product Description
CISCO3945E/K9	Cisco 3945 with 4 onboard GE, C3900-SPE250/K9, 3 EHWIC slots, 3 DSP slots, 4 SM slots, 256MB CF default, 1 GB DRAM default, IP Base
CISCO3925E/K9	Cisco 3925 with 4 onboard GE, C3900-SPE200/K9, 3 EHWIC slots, 3DSP slots, 2 SM slots, 256MB CF default, 1 GB DRAM default, IP Base
CISCO3945/K9	Cisco 3945 with 3 onboard GE, C3900-SPE150/K9, 4 EHWIC slots, 4 DSP slots, 1 ISM slot, 4 SM slots, 256MB CF default, 1 GB DRAM default, IP Base
CISCO3925/K9	Cisco 3925 with 3 onboard GE, C3900-SPE100/K9, 4 EHWIC slots, 4 DSP slots, 1 ISM slot, 2 SM slots, 256MB CF default, 1 GB DRAM default, IP Base
Cisco 3900 Series Routers DRAM (Factory Upgrades and Spares)
Ordering SKU	Description
MEM-3900-1GU4GB	1GB to 4GB DRAM Upgrade (2GB+2GB) for Cisco 3925/3945 ISR
MEM-3900-1GB-DEF	1GB DRAM (512MB+512MB) for Cisco 3925-3945E ISR (Default)
MEM-3900-1GU2GB	1GB to 2GB DRAM Upgrade (1GB+1GB) for Cisco 3925-3945E ISR
MEM-3900-512MB=	512MB DRAM for Cisco 3925-3945E ISR (only as spare)
MEM-3900-1GB=	1GB DRAM for Cisco 3925-3945E ISR (only as spare)
Cisco 3900 Series Routers Compact Flash (Factory Upgrades and Spares)
Ordering SKU	Description
MEM-CF-256U4GB	256MB to 4GB Compact Flash Upgrade for Cisco 1900, 2900, 3900 ISR
MEM-CF-256U2GB	256MB to 2GB Compact Flash Upgrade for Cisco 1900, 2900, 3900 ISR
MEM-CF-256U1GB	256MB to 1GB Compact Flash Upgrade for Cisco 1900, 2900, 3900 ISR
MEM-CF-256U512MB	256MB to 512MB CF Upgrade for Cisco 1900, 2900, 3900 ISR
MEM-CF-256MB	256MB Compact Flash for Cisco 1900, 2900, 3900 ISR (Default)
MEM-CF-4GB=	4GB Compact Flash (Spare) for Cisco 1900, 2900, 3900 ISR (only as spare)
MEM-CF-2GB=	2GB Compact Flash (Spare) for Cisco 1900, 2900, 3900 ISR (only as spare)
MEM-CF-1GB=	1GB Compact Flash (Spare) for Cisco 1900, 2900, 3900 ISR (only as spare)
MEM-CF-512MB=	512MB Compact Flash (Spare) for Cisco 1900, 2900, 3900 ISR (only as spare)
MEM-CF-256MB=	256MB Compact Flash (Spare) for Cisco 1900, 2900, 3900 ISR (only as spare)
