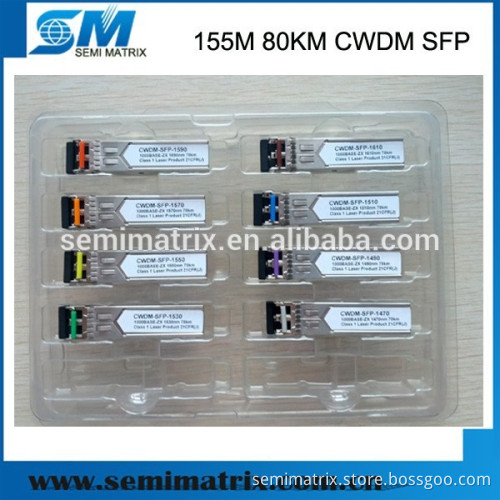

155M 80KM CWDM SFP Optical Transceiver Module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -155M CWDM SFP
-80km Reach distance
-1270-1610nm 18 CWDM DFB wavelengths
-Dual LC/UPC
-All Brands compatible
155M 80KM CWDM SFP Optical Transceiver Module Product Description The Coarse Wavelength-Division Multiplexing (CWDM) Small Form-Factor Pluggable (SFP) solution allows enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet and Fibre Channel services in their networks. The product set helps enable the flexible design of highly available, multiservice networks. Our CWDM SFP solution is a convenient and cost-effective solution for the adoption of Gigabit Ethernet and Fibre Channel in campus, data-center, and metropolitan-area access networks. The CWDM SFP solution has two main components : a set of eight different pluggable transceivers ( CWDM GBICs and CWDM SFPs), and a set of different CWDM passive multiplexer/demultiplexer or optical add/drop multiplexers (OADMs). A CWDM chassis enables rack-mounting up to two of the CWDM passives. Both the transceivers and the passive multiplexers are compliant with the ITU-T G.694.2 standard defined CWDM grid.
Specifications
Applications
Detailed Images
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Payment & Warranty We offer 3 years warranty to our products.
Packaging & Shipping
Ordering Information
-80km Reach distance
-1270-1610nm 18 CWDM DFB wavelengths
-Dual LC/UPC
-All Brands compatible
155M 80KM CWDM SFP Optical Transceiver Module Product Description The Coarse Wavelength-Division Multiplexing (CWDM) Small Form-Factor Pluggable (SFP) solution allows enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet and Fibre Channel services in their networks. The product set helps enable the flexible design of highly available, multiservice networks. Our CWDM SFP solution is a convenient and cost-effective solution for the adoption of Gigabit Ethernet and Fibre Channel in campus, data-center, and metropolitan-area access networks. The CWDM SFP solution has two main components : a set of eight different pluggable transceivers ( CWDM GBICs and CWDM SFPs), and a set of different CWDM passive multiplexer/demultiplexer or optical add/drop multiplexers (OADMs). A CWDM chassis enables rack-mounting up to two of the CWDM passives. Both the transceivers and the passive multiplexers are compliant with the ITU-T G.694.2 standard defined CWDM grid.
Specifications | *Up to 155Mb/s data links | * RoHS compliant and lead-free |
| * 1270-1610nm CWDM DFB laser transmitter & PIN photo-detector | * Single +3.3V power supply |
| * Up to 80km on 9/125µm SMF | * Compliant with SFF-8472 |
| * Hot-pluggable SFP footprint | * Case operating temperature |
| *Duplex LC/UPC type pluggable optical interface | Commercial: 0°C to +70°C |
| * Low power dissipation | Extended: -10°C to +80°C |
| * Metal enclosure, for lower EMI | Industrial: -40°C to +85°C |
| * Fast Ethernet | * Router/Server interface |
| * Switch to Switch interface | * Fiber Channel |
| * Switched backplane applications | * Other optical links |
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks. Payment & Warranty We offer 3 years warranty to our products. Packaging & Shipping Ordering Information | Part Number | Package Style | Data Rate | Reach | LD | PD |
| 155-CWDM-SFP-40 | SFP | 155Mb/s | 40 KM | CWDM DFB 1270-1610nm | PIN |
| 155-CWDM-SFP-80 | SFP | 155Mb/s | 80 KM | CWDM DFB 1270-1610nm | PIN |
| 155-CWDM-SFP-120 | SFP | 155Mb/s | 120 KM | CWDM DFB 1270-1610nm | PIN |
| 155-CWDM-SFP-150 | SFP | 155Mb/s | 150 KM | CWDM DFB 1270-1610nm | APD |
| 622-CWDM-SFP-20 | SFP | 622Mb/s | 20 KM | CWDM DFB 1270-1610nm | PIN |
| 622-CWDM-SFP-40 | SFP | 622Mb/s | 40 KM | CWDM DFB 1270-1610nm | PIN |
| 622-CWDM-SFP-80 | SFP | 622Mb/s | 80 KM | CWDM DFB 1270-1610nm | PIN |
| 1.25G-CWDM-SFP-20 | SFP | 1.25Gb/s | 20 KM | CWDM DFB 1270-1610nm | PIN |
| 1.25G-CWDM-SFP-40 | SFP | 1.25Gb/s | 40 KM | CWDM DFB 1270-1610nm | PIN |
| 1.25G-CWDM-SFP-80 | SFP | 1.25Gb/s | 80 KM | CWDM DFB 1270-1610nm | PIN |
| 1.25G-CWDM-SFP-120 | SFP | 1.25Gb/s | 120 KM | CWDM DFB 1270-1610nm | APD |
| 1.25G-CWDM-SFP-160 | SFP | 1.25Gb/s | 160 KM | CWDM DFB 1470-1610nm | APD |
| 2.5G-CWDM-SFP-40 | SFP | 2.5Gb/s | 40 KM | CWDM DFB 1270-1610nm | PIN |
| 2.5G-CWDM-SFP-80 | SFP | 2.5Gb/s | 80KM | CWDM DFB 1270-1610nm | PIN |
| 2.5G-CWDM-SFP-120 | SFP | 2.5Gb/s | 120KM | CWDM DFB 1270-1610nm | APD |
| 4.25G-CWDM-SFP-20 | SFP | 4.25Gb/s | 20 KM | CWDM DFB 1270-1610nm | PIN |
| 4.25G-CWDM-SFP-40 | SFP | 4.25Gb/s | 40 KM | CWDM DFB 1270-1610nm | PIN |
| 4.25G-CWDM-SFP-80 | SFP | 4.25Gb/s | 80 KM | CWDM DFB 1270-1610nm | APD |
