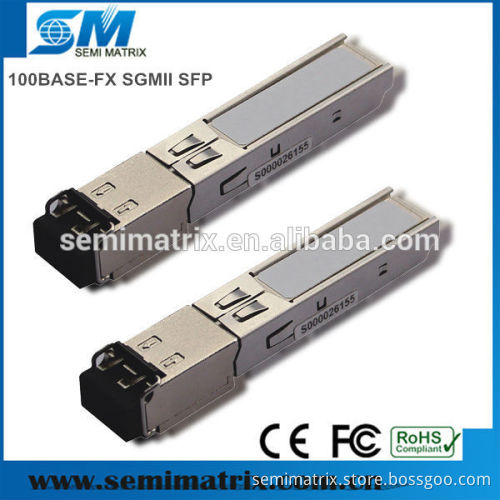

100BASE-FX 2km Spring-Latch SGMII SFP Optical Transceiver Module

Specifications -100BASE-FX SGMII SFP

-Build-in PHY supporting SGMII Interface

-2km Reach

-Dual LC interface

-All Brands compatible

100BASE-FX 2km Spring-Latch SFP Optical Transceiver Module   Product Description
SFP transceiver is high performance, cost effective modules. This SFP designed for 100BASE-FX applications of 2km with MMF.   The transceiver consists of two sections: The standard SFP part and the PHY part built with SGMII interface.   Main Features 1.Build-in PHY supporting SGMII Interface
2.100BASE-LX/1000BASE-X operation
3.1310nm FP laser and PIN photo-detector
4.10km transmission with SMF
5. Standard serial ID information Compatible with SFP MSA
6.SFP MSA package with duplex LC connector
7.With Spring-Latch for high density application
8.Very low EMI and excellent ESD protection
9.+3.3V single power supply
10.Operating case temperature: 0°C to 70°C(Standard), -40°C to 85°C (Industrial)                                                           Applications   1.Switch to Switch interface
2.Switched backplane applications
3.Router/Server interface
4.Other optical transmission systems
5.100BASE-FX
6.1000BASE-X   Standards   Compatible with SFP MSA
Compatible with IEEE 802.3ah-2004   Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.           Our Services Semi Matrix provides OEM, ODM and other Customize services to the customers who required.   We supply the suitable Optical Solution according to your requirements, and we  design  the label and packaging as you need.   Welcome any inquiry of customized products and service.     Detailed Images        Installation Demo                 Packaging & Shipping     ---------------------------------------------------------------------------------------------------------------------------------------   Ordering Information

Part No.	Fiber Type	Data Rate Range	Wavelength	Optical Components	Distance Range/Power Budget	Connector	Case Temperature range	Application
SGMII-SFP-A	MMF	100Mbps	850nm	VCSEL/PIN	2km	LC	Com./Ind.	FE
SGMII-SFP-B	MMF	100Mbps	1310nm	FP/PIN	2km	LC	Com./Ind.	FE
SGMII-SFP-C	MMF	100Mbps	1550nm	FP/PIN	2km	LC	Com./Ind.	FE
SGMII-SFP-D	MMF	100Mbps	1310nm	FP/PIN	2km	LC	Com./Ind.	FE
SGMII-SFP-E	MMF	100Mbps	1550nm	FP/PIN	2km	LC	Com./Ind.	FE
SGMII-SFP-F	MMF	1000Mbps	1310nm	FP/PIN	2km	LC	Com./Ind.	GE
SGMII-SFP-G	MMF	1000Mbps	1550nm	FP/PIN	2km	LC	Com./Ind.	GE
SGMII-SFP-H	SMF	100Mbps	1310nm	FP/PIN	10km	LC	Com./Ind.	FE
SGMII-SFP-I	SMF	100Mbps	1550nm	FP/PIN	10km	LC	Com./Ind.	FE
SGMII-SFP-J	SMF	100Mbps	1310nm	FP/PIN	10km	LC	Com./Ind.	FE
SGMII-SFP-K	SMF	100Mbps	1550nm	FP/PIN	10km	LC	Com./Ind.	FE
SGMII-SFP-L	SMF	1000Mbps	1310nm	FP/PIN	10km	LC	Com./Ind.	GE
SGMII-SFP-M	SMF	1000Mbps	1550nm	FP/PIN	10km	LC	Com./Ind.	GE

    Payment & Warranty We offer 3 years warranty to our products.
