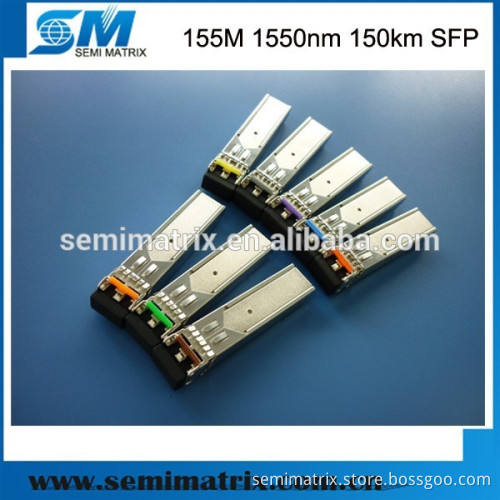

155Mbps 1550nm 150km SFP Optical Transceiver
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -155M SFP
-1550nm wavelength DFB
-Up to 150km distance
-Compatible with RoHS
-Digital Diagnostic Monitoring is available
155Mbps 1550nm 150km SFP Optical Transceiver Product Description The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 150km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Specifications Features * Up to 155Mbps data-rate * 1550nm DFB laser and PIN photo detector for 150km transmission with SMF * Compliant with SFP MSA and SFF-8472 with duplex LC receptacle * Digital Diagnostic Monitoring:Internal Calibration or External Calibration
* Compatible with RoHS * +3.3V single power supply
* Operating case temperature: Standard : 0 to +70°C Applications * SDH STM-1, S-1.1,L-1.1, L-1.2
* SONET OC-3 IR1,LR1,LR2 * Other optical links Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Payment & Warranty We offer 3 years warranty to our products.
Packaging & Shipping
Ordering Information
-1550nm wavelength DFB
-Up to 150km distance
-Compatible with RoHS
-Digital Diagnostic Monitoring is available
155Mbps 1550nm 150km SFP Optical Transceiver Product Description The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 150km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Specifications Features * Up to 155Mbps data-rate * 1550nm DFB laser and PIN photo detector for 150km transmission with SMF * Compliant with SFP MSA and SFF-8472 with duplex LC receptacle * Digital Diagnostic Monitoring:Internal Calibration or External Calibration * Compatible with RoHS * +3.3V single power supply
* Operating case temperature: Standard : 0 to +70°C Applications * SDH STM-1, S-1.1,L-1.1, L-1.2
* SONET OC-3 IR1,LR1,LR2 * Other optical links Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Payment & Warranty We offer 3 years warranty to our products. Packaging & Shipping Ordering Information | Part Number | Package Style | Data Rate | Reach | LD | PD |
| 155-SFP-850-2 | SFP | 155Mb/s | ≤2KM | 850nm VCSEL | PIN |
| 155-SFP-1310-2 | SFP | 155Mb/s | ≤2KM | 1310nm FP(LED) | PIN |
| 155-SFP-1310-10 | SFP | 155Mb/s | 10 KM | 1310nm FP | PIN |
| 155-SFP-1310-20 | SFP | 155Mb/s | 20KM | 1310nm FP | PIN |
| 155-SFP-1310-40 | SFP | 155Mb/s | 40KM | 1310nm FP | PIN |
| 155-SFP-1550-40 | SFP | 155Mb/s | 40KM | 1550nm DFB | PIN |
| 155-SFP-1550-80 | SFP | 155Mb/s | 80KM | 1550nm DFB | PIN |
| 155-SFP-1550-120 | SFP | 155Mb/s | 120KM | 1550nm DFB | PIN |
| 155-SFP-1550-150 | SFP | 155Mb/s | 150KM | 1550nm DFB | APD |
