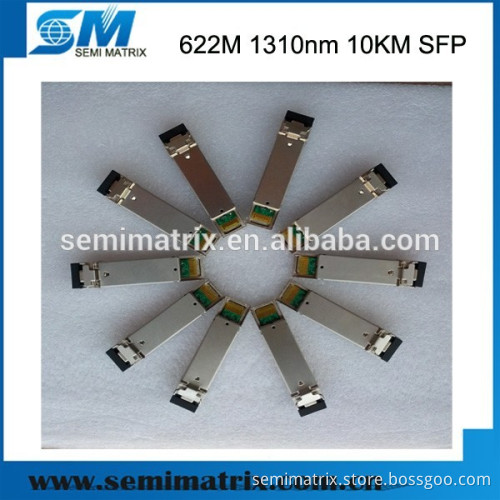

622Mbps 1310nm 10km SFP Optical Transceiver
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -Up to 622Mbps data-rate
-1310nm FP laser Tx & PIN Rx
-Up to 10km on 9/125um SMF
-Compatible with RoHS
-3 years warranty
622Mbps 1310nm 10km SFP Optical Transceiver Product Description The SFP transceivers are high performance, cost effective modules supporting data-rate of 622Mbps and 10km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Specifications
Applications
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Payment & Warranty We offer 3 years warranty to our products.
Packaging & Shipping
Ordering Information
-1310nm FP laser Tx & PIN Rx
-Up to 10km on 9/125um SMF
-Compatible with RoHS
-3 years warranty
622Mbps 1310nm 10km SFP Optical Transceiver Product Description The SFP transceivers are high performance, cost effective modules supporting data-rate of 622Mbps and 10km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Specifications | * Up to 622Mb/s data links with DDM | * RoHS compliant and lead-free |
| * 1310nm FP laser transmitter and PIN photo-detector | * Single +3.3V power supply |
| * Up to 10 km on 9/125µm SMF | * Compliant with SFF-8472 |
| * Hot-pluggable SFP footprint | * Case operating temperature |
| * Duplex LC/UPC type pluggable optical interface | Commercial: 0°C to +70°C |
| * Low power dissipation | Extended: -10°C to +80°C |
| * Metal enclosure, for lower EMI | Industrial: -40°C to +85°C |
| * Fast Ethernet | |
| * Switch to Switch interface | * SDH STM-4, S-4.1 |
| * Switched backplane applications | * SONET OC-12 IR1 |
| * Router/Server interface | * Other optical links |
Payment & Warranty We offer 3 years warranty to our products. Packaging & Shipping Ordering Information | Part Number | Package Style | Data Rate | Reach | LD | PD |
| 622-SFP-850 | SFP | 622Mb/s | ≤2KM | 850nm VCSEL | PIN |
| 622-SFP-1310-10 | SFP | 622Mb/s | 10 KM | 1310nm FP | PIN |
| 622-SFP-1310-20 | SFP | 622Mb/s | 20KM | 1310nm FP | PIN |
| 622-SFP-1310-40 | SFP | 622Mb/s | 40KM | 1310nm FP | PIN |
| 622-SFP-1550-40 | SFP | 622Mb/s | 40KM | 1550nm DFB | PIN |
| 622-SFP-1550-80 | SFP | 622Mb/s | 80KM | 1550nm DFB | PIN |
| 622-SFP-1550-120 | SFP | 622Mb/s | 120KM | 1550nm DFB | APD |
