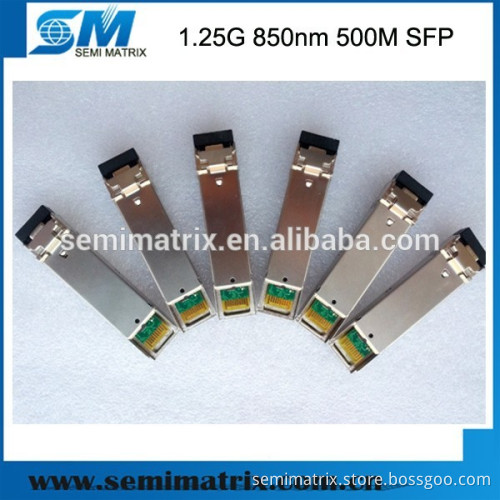

1.25G SX 850nm 550m SFP Optical Transceiver
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -Up to 1.25Gbps data-rate
-850nm VCSEL laser Tx & PIN Rx
-Up to 550m on MMF
-Compatible with RoHS
-3 years warranty
1.25G SX 850nm 550m SFP Optical Transceiver Product Description The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA. Specifications
Applications
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Payment & Warranty We offer 3 years warranty to our products.
Packaging & Shipping
Ordering Information
-850nm VCSEL laser Tx & PIN Rx
-Up to 550m on MMF
-Compatible with RoHS
-3 years warranty
1.25G SX 850nm 550m SFP Optical Transceiver Product Description The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA. Specifications
| * Up to 1.25G b/s data links with DDM | * RoHS compliant and lead-free |
| * 850nm VCSEL laser transmitter and PIN photo-detector | * Single +3.3V power supply |
| * Up to 550 m on 50/125µm MMF | * Compliant with SFF-8472 |
| * Hot-pluggable SFP footprint | * Case operating temperature |
| * Duplex LC/UPC type pluggable optical interface | Commercial: 0°C to +70°C |
| * Low power dissipation | Extended: -10°C to +80°C |
| * Metal enclosure, for lower EMI | Industrial: -40°C to +85°C |
| * Gigabit Ethernet | * 1 x Fiber Channel |
| * Switch to Switch interface | |
| * Switched backplane applications | |
| * Router/Server interface | * Other optical links |
Payment & Warranty We offer 3 years warranty to our products. Packaging & Shipping Ordering Information | Part Number | Package Style | Data Rate | Reach | LD | PD |
| 1.25G-SFP-850 | SFP | 1.25Gb/s | 550M | 850nm VCSEL | PIN |
| 1.25G-SFP-1310-10 | SFP | 1.25Gb/s | 10 KM | 1310nm FP | PIN |
| 1.25G-SFP-1310-20 | SFP | 1.25Gb/s | 20KM | 1310nm FP | PIN |
| 1.25G-SFP-1310-40 | SFP | 1.25Gb/s | 40KM | 1310nm FP | PIN |
| 1.25G-SFP-1550-40 | SFP | 1.25Gb/s | 40KM | 1550nm DFB | PIN |
| 1.25G-SFP-1550-80 | SFP | 1.25Gb/s | 80KM | 1550nm DFB | PIN |
| 1.25G-SFP-1550-120 | SFP | 1.25Gb/s | 120KM | 1550nm DFB | PIN |
| 1.25G-SFP-1550-150 | SFP | 1.25Gb/s | 160KM | 1550nm DFB | APD |
