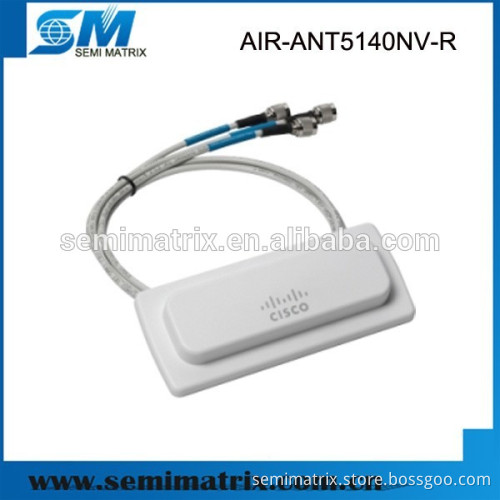

Aironet 5-GHz MIMO Wall Mount Omnidirectional Antenna AIR-ANT5140NV-R

Specifications -AIR-ANT5140NV-R

-indoor/outdoor 5GHz

-4 dBi

-Omnidirectional

-1 year warranty

Cisco  Aironet 5-GHz MIMO Wall Mount Omnidirectional Antenna AIR-ANT5140NV-R   Product Description   This document outlines the specifications for the Cisco Aironet 5-GHz MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT5140NV-R) and provides instructions for mounting it. The antenna operates in the 5-GHz frequency range and is designed for indoor or outdoor use.   Specifications AIR-ANT5140NV-R

Antenna type	3-element MIMO omnidirectional
Operating frequency range	5150 - 5850 MHz
VSWR	2:1 or less
Peak gain	4 dBi
Polarization	Linear, vertical
Azimuth plane	Ominidirectional
(3 dB beamwidth)
Elevation plane	36°
(3 dB beamwidth
Length	8.6 in (21.8 cm)
Diameter	6.3 in (16 cm)
Weight	Antenna: 1.33 lb (623.6 g);
	Antenna and packaging: 3.39 lb (1.54 kg)
Cable	3-ft. (91.4 cm) plenum rated with blue ID markers
Connector	RP-TNC
Environment	Indoor/outdoor
Temperature range	-22° F to 158° F
	(-30° C to 70° C)

              Payment & Warranty We offer 3 years warranty to our products.           Packaging & Shipping  Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.                 Ordering Information Some Antennas :

AIR-ANT2524DG-R	AIR-ANT5140V-R
AIR-ANT2524DB-R	AIR-ANT24120
AIR-ANT2524DW-R	AIR-ANT2422DB-R
AIR-ANT5135DW-R	AIR-ANT2422DW-R
AIR-ANT5135DB-R	AIR-ANT2422DG-R
AIR-ANT5135DG-R	AIR-ANT2430V-R
AIR-ANT5135D-R	AIR-ANT1728
AIR-ANT5140NV-R	AIR-ANT4941
