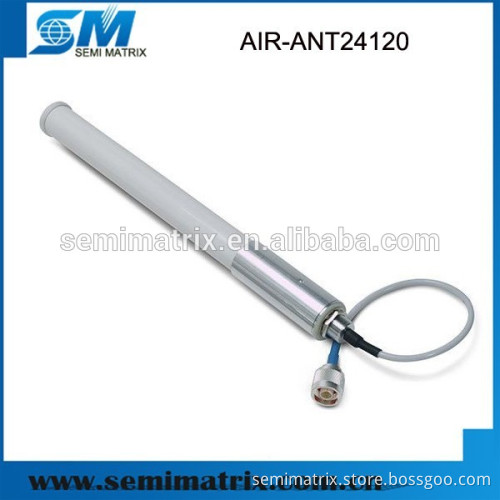

Aironet 12 dBi High Gain Omnidirectional Antenna AIR-ANT24120

Specifications -AIR-ANT24120

-outdoor 2.4GHz

-12 dBi

-Omnidirectional

-1 year warranty

Cisco   Aironet 12 dBi High Gain Omnidirectional Antenna AIR-ANT24120   Product Description    This document outlines the specifications and description of the 12-dBi high gain omnidirectional antenna. This antenna operates in the 2400-2500 MHz band and is designed for use outdoors. The antenna is compatible with Cisco Aironet radio products utilizing a reverse-polarity TNC (RP-TNC) connector.   Specifications AIR-ANT24120

Antenna type	Vertical colinear array, Omnidirectional
Operating frequency range	2400-2500 MHz
Nominal input impedance	50 ohms
Nominal VSWR	1.5:1
Peak gain	12 dBi
Polarization	Linear, vertical
Dimensions	42 x 1.5 in
	(106 x 3.8 cm)
Weight	3 lb (1.36 kg)
Connector type	RP-TNC plug
Coax type	RG-213
Environment	Outdoor
Operating temperature range	-40oF to 158oF
	(-40oC to 70oC)
Wind rating	125 mph (201 kmh)

                Payment & Warranty We offer 3 years warranty to our products.           Packaging & Shipping  Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.                 Ordering Information Some Antennas :

AIR-ANT2524DG-R	AIR-ANT5140V-R
AIR-ANT2524DB-R	AIR-ANT24120
AIR-ANT2524DW-R	AIR-ANT2422DB-R
AIR-ANT5135DW-R	AIR-ANT2422DW-R
AIR-ANT5135DB-R	AIR-ANT2422DG-R
AIR-ANT5135DG-R	AIR-ANT2430V-R
AIR-ANT5135D-R	AIR-ANT1728
AIR-ANT5140NV-R	AIR-ANT4941
