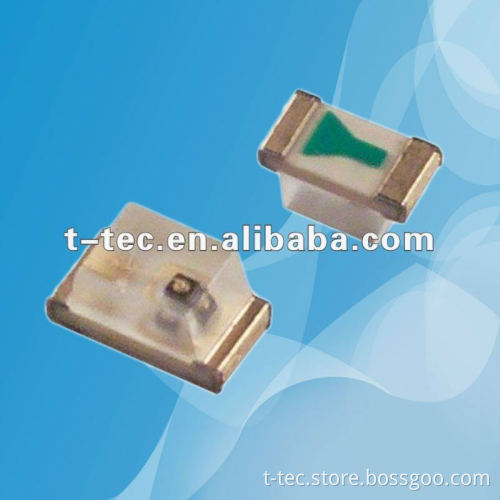

0603 SMD 505NM-535NM Pure Green Led for Strip Led Light

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 0603 SMD 505NM-535NM Pure Green Led for Strip Led Light

Absolute Maximum Rating (Ta=25°C)

Plus with Max 10ms, duty ratio max1/10 n Initial Electrical/Optical Characteristics (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	3.0	3.15	3.4	V
DC reverse Current	I_R	V=5V	----	----	10	μA
Chromaticity coordinates*	λ	I=20mA		605		nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	I_V	I=20mA	200	----	400	mcd
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg
