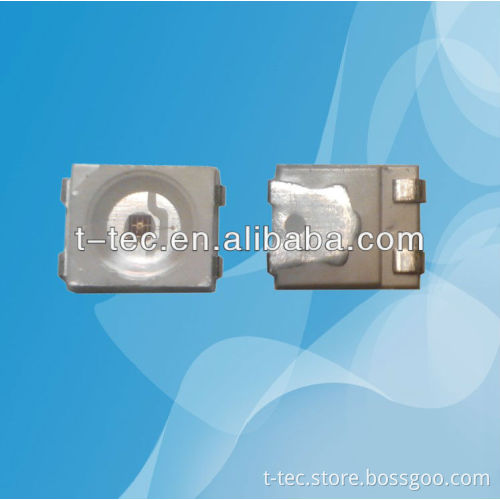

3528 smd 3000nm infrared diode

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications Lifes pan:30,000h

Peak Wave Length:3000nm.

Application:led lighting

Absolute Maximum Rating (Ta=25°C)

Plus with Max 10ms,duty ratio max1/10 n Initial Electrical/Optical Characteristics (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=200mA		0.3		V
DC reverse Current	IR	V=5V				μA
Peak Wavelength	λP	I=200mA	3000	3200	3200	nm
Spectrum Radiation Bandwidth	Δλ	I=200mA	600	700	800	Nm
Radiant Power	Φe	I=200mA	12	14	16	μW
Radiant power*	Φe	I=1A	180	200	220	μW
50%Power Angle	2θ1/2	I=200mA	----	120	----	deg
Switching time	tr, tf	I=200mA	10	30	50	ns
