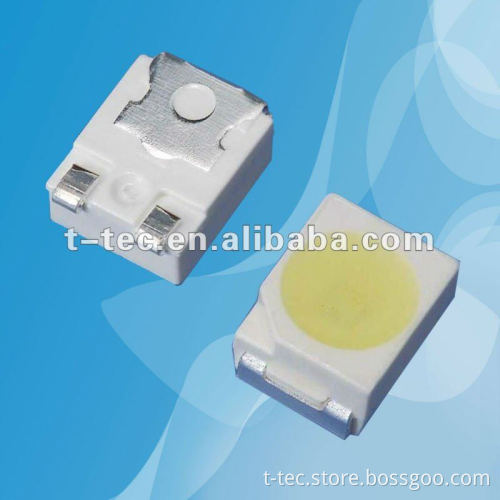

3528 white color SMD LED with high lumens
  • 3528 white color SMD LED with high lumens
3528 white color SMD LED with high lumens

3528 white color SMD LED with high lumens

Delivery Time:
10 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
3528 white  color SMD LED with  high  lumens       Features
1.Ideal for indication light on hand held products
2.Long life and robust package
3.Standard Package: 2000pcs/ Reel
4.MSL (Moisture Sensitivity Level): 3
5.RoHS compliant     Package size :

Parameter

Symbol

Rating

Unit

Power Dissipation

PD

60

mW

Forward Current (DC)

IF

20

mA

Peak Forward Current

IFP

100

mA

Reverse Voltage

VR

5.0

V

Operation Temperature Range

Top

-25to+85

°C

Storage Temperature Range

Tstg

-40to+100

°C

Soldering Temperature

260°C/5sec



Parameter

Test Condition

Symbol

Min

Typ

Max

Unit

Forward Voltage( VF)

IF=20mA

VF

3.0



3.6

V

View Angle

IF=20mA

2θ1/2



120



deg

Reverse Current

VR=-5V

IR



2

μA

Color temperature

IF=20mA

CCT

6500



7500

K

Luninous Intendity(IV)

IF=20mA

IV

1000



1400

mcd
