0.5W 2835 SMD 660nm Red LED

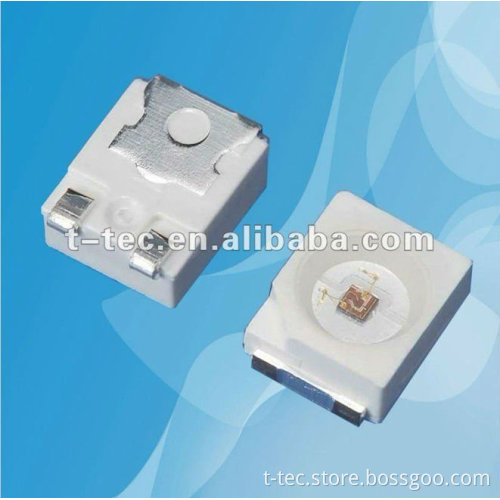

0.5W  2835  660nm Red color  SMD  LED   Photo:                 Applications   1.Medical equipment, 2.other special light sources, 3.visual systems, 4.plant growth lights       Package size :
Absolute Maximum Rating

Item	Symbol	Value	Unit
DC forward current	IF	150	mA
Pulse forward current	IFP	1000	mA
Power dissipation	PD	500	mW
Operating temperature	Topr	-20~+75	°C
Storage temperature	Ystg	-30~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---

          Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=150mA	----	2.1	2.3	V
DC reverse Current	IR	V=5V	----	----	10	μA
Dome Wavelength	λD	I=150mA	--	645
Peak Wavelength	λP		655	660	665
Spectrum Radiation Bandwidth	Δλ	I=150mA	----	20	----	Nm
Luminous Intensity	IV	I=150mA	3500		5500	mcd
Luminous Flux	LV	I=150mA	10		15	lm
50%Power Angle	2θ1/2	I=150mA	----	120	----	deg

                    other IR Wave Length:660-670NM    680-690NM   700-710NM   730-740NM  750-770NM  800-810NM  830-850NM 870-890NM 900-910NM 930-950NM 970-980m 1000-1050NM
