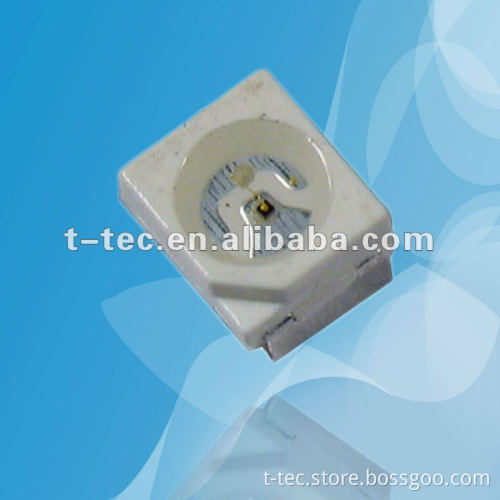

3528 PlCC2 365nm UV SMD LED

Specifications 3528 365nm UV SMD LED

Lifes pan:30,000h

Peak Wave Length:365nm.

Application:led lighting

3528 PlCC2  365nm UV SMD LED 1.Model: XL3528UVC365 2.Material: GaN 3.Lens: Water Clear 4.Peak Wave Length: 365nm,other length are available. 5.Optical Data: If=20mA 6.Luminous intensity: 1.5mW 7.Viewing Angle: 120o 8.high brightness,can be used for led lighting.       Package size:               n Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	3.0	3.2	3.5	V
DC reverse Current	IR	V=5V	----	----	10	μA
Dominant Wavelength	λd	I=20mA	360	365	370
Peak Wavelength	λP	I=20mA		365		nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	18	----	Nm
Radiant intensity	IE	I=20mA	15		20	Mw/sr
Radiant power	Φe	I=20mA	3	5	8	mW
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg
