3528 PLCC2 SMD 365nm UV led

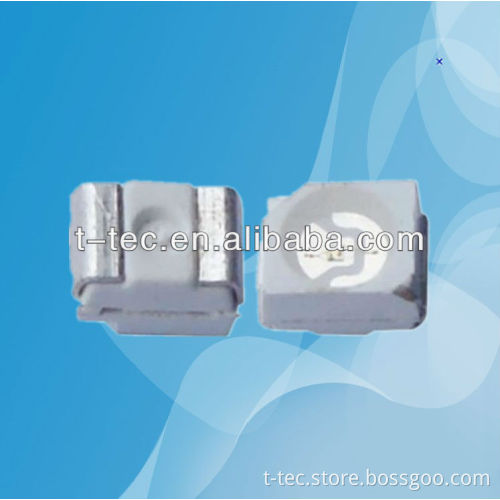

 3528 PLCC2  SMD 365nm UV led   Applications Ø Up to electronic switch  Ø Digital read out lamps  Ø Audio equipment  Ø Point-of-use Water and Air Purification Ø Medicine (Diagnostics and Light Therapy)      Package size:       Photo:                 Absolute Maximum Rating              (Ta=25°C)

Item	Symbol	Value	Unit
DC forward current	IF	20	mA
Pulse forward current	IFP	100	mA
Power dissipation	PD	100	mW
Operating temperature	Topr	-40~+85	°C
Storage temperature	Ystg	-40~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---

Plus with Max 10ms,duty ratio max1/10         n Initial Electrical/Optical Characteristics                                (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	3.3	3.6	4.2	V
DC reverse Current	IR	V=5V	----	----	5	μA
Peak wavelength*	WD	I=20mA	363		370	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	15	----	Nm
Optical  output   power	IV	I=20mA	2		4	mW
50%Power Angle	2θ1/2	I=20mA	----	20	----	deg
