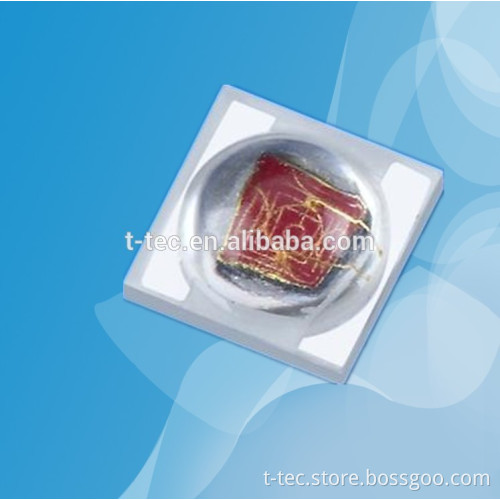

3535 590nm yellow color SMD power LED

Specifications 3535 590nm deep red SMD power LED,

3535  590nm yellow color SMD   power LED,     Applications   1.optical communications, light barriers, measurement systems 2.Medical appliances, remote control   3.Disinfection and sterilizer   4.Special Light       Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=700mA	2.2	2.3	2.5	V
DC forward Voltage	VF	I=20mA	1.8	2.1	2.3	V
DC reverse Current	IR	V=5V	----	----	10	μA
Peak wavelength	λP	I=700mA		595		nm
Dome wavelength	λD	I=700mA	585	590	595
Spectrum Radiation Bandwidth	Δλ	I=700mA	----	20	----	Nm
Luminous Intensity	Ø	I=700mA	40	----		LM
50%Power Angle	2θ1/2	I=700mA	----	120	----	deg
Switching time	tr, tf	I=700mA		13,10		ns

           size drawing:
