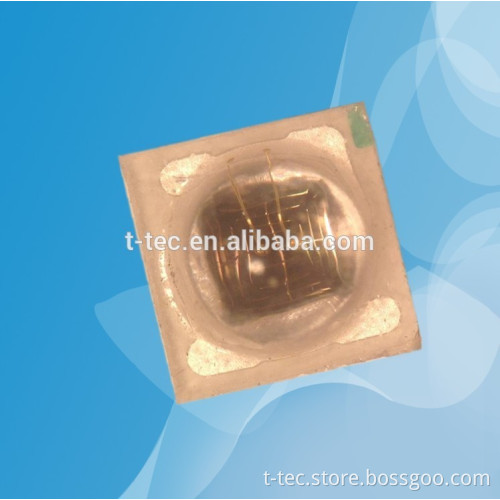

3535 940nm infrared SMD power LED

3535  940nm infrared SMD power led   Applications   1.optical communications, light barriers, measurement systems   2.Medical appliances, remote control   3.Disinfection and sterilizer   4.Special Light       n Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=350mA	1.25	1.35	1.5	V
DC forward Voltage	VF	I=700mA	1.45	1.55	1.7	V
DC reverse Current	IR	V=5V	----	----	10	μA
Peak wavelength	λ	I=350mA	----	940	----	nm
Spectrum Radiation Bandwidth	Δλ	I=350mA	----	50	----	Nm
Radiant power	Po	I=350mA	60	----	100	mw
50%Power Angle	2θ1/2	I=350mA	----	120	----	deg
Switching time	tr, tf	I=350mA		25		ns

           size drawing:      1)   2)   3)
