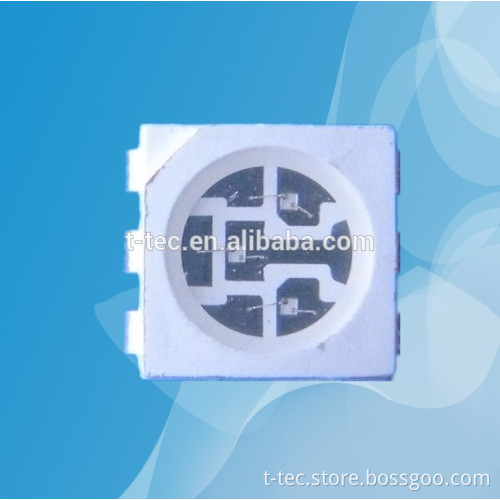

5050 430nm UV SMD LED

5050 430nm UV SMD LED   Absolute Maximum Ratings (TA=25°C)

Parameter	Symbol	Rating	Unit
Power Dissipation	PD	200	mW
Forward Current (DC)	IF	60	mA
Peak Forward Current*	IFP	100	mA
Reverse Voltage	VR	5.0	V
Operation Temperature Range	Top	-25to+85	°C
Storage Temperature Range	Tstg	-40to+100	°C
Soldering Temperature	260°C/5sec

*Pulse width≤0.1msec Duty Ratio ≤1/10   Electrical and Optical Characteristics (TA=25°C)

Parameter	Test   Condition	Symbol	Min	Typ	Max	Unit
Forward Voltage( VF)	IF=60mA	VF	3.2		4.0	V
View Angle	IF=60mA	2θ1/2		120		deg
Reverse Current	VR=-5V	IR			2	μA
Wavelength	IF=60mA	wl	425	430	435	nm
Luninous Intendity(IV)	IF=60mA	IV	10		25	Mw

High brightness surface mount technology.
Emitting view angle 120o
Suitable for all SMT assembly method.
IR reflow soldering and vapor phase reflow soldering.
For outdoor and indoor display, backlight application package
