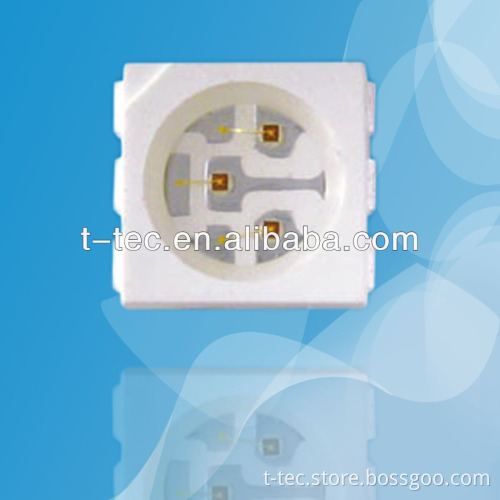

0.2w 5050 660nm Deep Red SMD LED

0.2w 5050 660nm Deep Red SMD LED   Futures:   1)  Viewing  angle  :120deg    2)  The  materials  of   the LED dice  is  ALGaP    3)ROHS  compliant  lead-free  soldering compatible     Descriptions:    For  plants growth   For medical use   Appearance:     Package   Electrical and Optical Characteristics (TA=25℃)

Parameter	Test Condition	Symbol	Min	Typ	Max	Unit
Forward Voltage( VF)	IF=60mA	VF	1.8		2.2	V
Dome Wavelength	IF=60mA	WD		660		nm
Spectrum Radiation Bandwidth	I=20mA	Δλ	----	40	----	Nm
View Angle	IF=60mA	2θ1/2		120		deg
Reverse Current	VR=-5V	IR			2	μA
Power Intensity	IF=60mA	Po	8	12		mw
Luminous Intensity	IF=60mA	IV	600	700		mcd
