0.5w 5630 460nm Power SMD Led

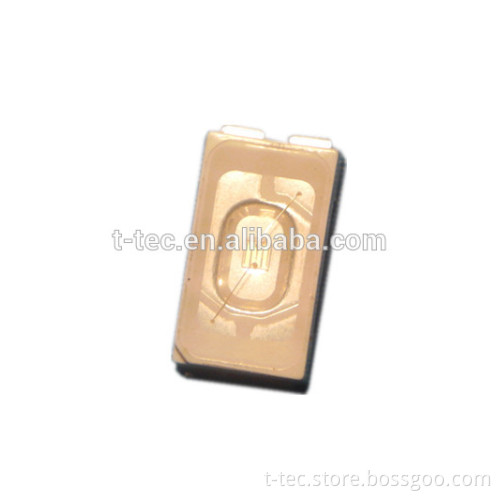

0.5w 5630 460nm Power SMD Led Descriptions Due to the package design, It has wide viewing angle, low power consumption and  This feature makes the LED ideal for light guide application.     Features Super-luminosity chip LED. White SMT package. Lead frame package with individual 2 pins. Wide viewing angle. Soldering methods: IR reflow soldering. Pb-free. The product itself will remain within RoHS compliant version.       Applications General lighting Decorative and Entertainment Lighting. Indicators. Illuminations.   Photo:     Package size:             Absolute Maximum Rating              (Ta=25°C)

Item	Symbol	Value	Unit
DC forward current	IF	150	mA
Pulse forward current	IFP	500	mA
Power dissipation	PD	310	mW
Operating temperature	Topr	-40~+85	°C
Storage temperature	Ystg	-40~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---

Plus with Max 10ms,duty ratio max1/10   Initial Electrical/Optical Characteristics                                (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=150mA	3.0		3.5	V
DC reverse Current	IR	V=5V	----	----	10	μA
Dome Wavelength	λD	I=150mA	--	455
Peak Wavelength	λP		460		465
Spectrum Radiation Bandwidth	Δλ	I=150mA	----	20	----	Nm
Luminous Intensity	IV	I=150mA	2000		3500	mcd
Luminous Flux	LV	I=150mA	5		10	lm
50%Power Angle	2θ1/2	I=150mA	----	120	----	deg
