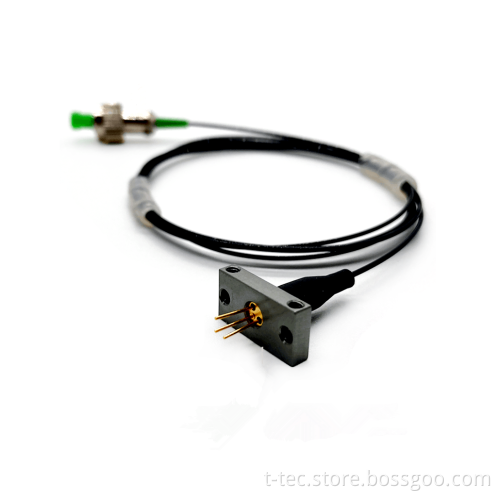

Singlemode SM 1310nm FC/APC Connector Fiber Cable with DFB Laser

1310nm DFB Laser:

It is an AlGaInAs MQW DFB laser with and integrated monitor photodiode. These devices are offered in a coaxial fiber-coupled package. The coaxial laser housing is mounted into a double-sided bracket to simplify mounting and assist with heat-sinking.

Proper Handling and Operation of Laser Diodes:

DFB's, like all semiconductor lasers, are highly susceptible to damage from ESD and from temperatures exceeding their specified safe operating range. The user is advised to use care and proper ESD safety practices when handling them to avoid damage to the laser. A properly rated low noise current source, a low thermal resistance mount and a temperature controller should be used for optimal device performance and reliability.

Electrical Operation: Operating a laser diode above the maximum ratings shown on the data sheet even for very short periods of time can damage the laser diode or reduce its lifetime. They should be electrically biased with a "laser diode driver" class current supply with low electrical noise and protection against voltage and current surges. Laser diodes are very sensitive to electrostatic discharge (ESD). Proper ESD precautions must be taken.

Mounting and Temperature Control: In order to maintain the lifetime of a laser diode, proper heat management is essential. Due to the design of the laser diode, heat is typically dissipated only through the base plate of the diode‘s package. A proper heat conducting interconnection between the diodes base plate and the heat sink must be maintained. Some devices require the use of a thermo-electric temperature controller to remove the heat from the laser and stabilize the temperature.

ELECTRICAL-OPTICAL CHARACTERISTICS (TYPCIAL @ T = 25 °C)
Wavelength: 1310 nm (± 5nm) Pulse Optical Output Power: 45 mW CW Optical Output Power: 15 mW Spectral width: 0.11 nm Spectral width: 1 MHz Side-mode suppression ratio: 55 dB Tracking error: 0.4 dB
PULSE SPECIFICATIONS
Pulse mode: pulse duration 10 μs, duty cycle = 0.01 Resonance frequency: 12 GHz Capacitance (PD): 10 pF
ELECTRICAL SPECIFICATIONS
Threshold current: 7 mA Operating current: 100 mA Operating voltage: 1.5 V Slope efficiency: 0.16 mW/mA Monitoring Output Current (PD): 0.6 mA
OPTICAL FIBER SPECIFICATIONS
Single Mode Fiber, MF-28 Ultra, with 0.9 loose tube jacket Fiber Connector: FC/APC Fiber Pigtail Length: 0.5 meters Other Fibers and Connectors Also Available; Inquire

Singlemode SM Fiber Cable with DFB Laser 1310nm 1550nm FC/APC Connector Electronic Components

Product Description

DFB's offer several key differentiating features relative to other types of semiconductor lasers. These features include their single frequency emission profile, their high stability and their ability to be tuned to adjacent wavelengths. These single frequency lasers employ Bragg diffraction gratings (mirrors) in their active gain region to form a waveguide. Unlike Fabry-Perot lasers, which utilize mirrors at both ends of the laser cavity, the reflection of the laser light in a DFB laser is along the entire cavity. This design principle allows them to deliver their single mode beam profile. DFB semiconductor materials include indium-phosphide and gallium-indium-arsenide-antimony.
