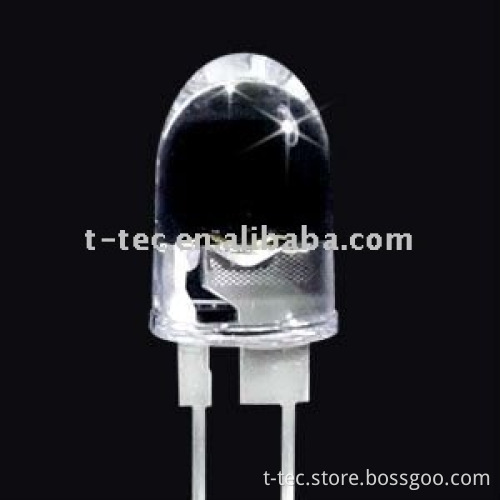

1W 10mm white POWER LED
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Package size:
Initial Electrical/Optical Characteristics (Ta=25℃) Item | Symbol | condition | Min | Type | Max | Unit |
DC forward Voltage | VF | I=350mA | 3.3 | 3.5 | 3.7 | V |
DC reverse Current | IR | V=5V | ---- | ---- | 10 | μA |
Color tempreture | λ | I=350mA | 2800 |
| 10000 |
|
Spectrum Radiation Bandwidth | Δλ | I=350mA | ---- | 20 | ---- | Nm |
Luminous Intensity | IV | I=350mA | 85 | 90 | 100 | LM |
50%Power Angle | 2θ1/2 | I=350mA | ---- | 30 | ---- | deg |
-
