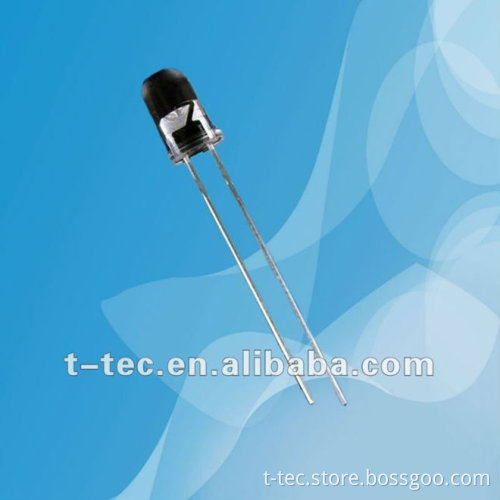

Led Light Parts 5mm 410nm UV Round Dip Led (405nm-415nm)

Specifications Led Light Parts 5mm 410nm UV Round Dip Led (405nm-415nm)

5mm 420nm UV Round Dip Led Light Emitting Diode (415nm-425nm)

Item	Symbol	Value	Unit
DC forward current	IF	20	mA
Pulse forward current	IFP	120	mA
Power dissipation	PD	150	mW
Operating temperature	Topr	-20~+75	°C
Storage temperature	Ystg	-30~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---



Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	3.2	3.4	3.8	V
DC reverse Current	IR	V=5V	----	----	5	μA
wavelength	Wd	I=20mA	415	420	425	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	IV	I=20mA	150	200	300	mcd
50%Power Angle	2θ1/2	I=20mA	----	40	----	deg

    Feature Water clear type 5mm standard directivity superior weather-resistance                   Applications Audio equipment Sterilization Toys Lure mosquitoes Led light UV curing machine Paper money
