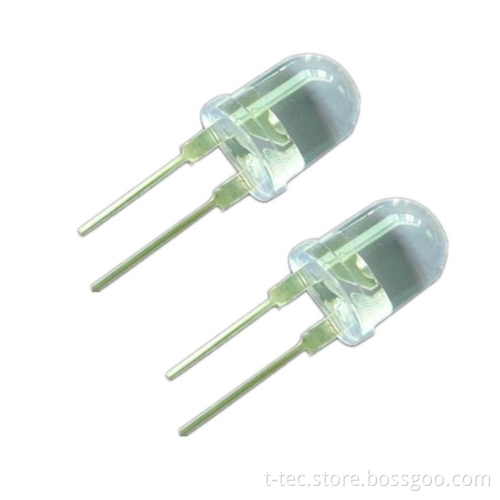

ROHS Certified T1 3/4 Inch Green Dip LED - 5mm, 500nm to 550nm Series

ROHS Certified T1 3/4 Inch Green Dip LED - 5mm, 500nm to 550nm Series

$5.00

10-4999 piece
$3.00

5000-9999 piece
$2.50

10000-19999 piece
$2.00

≥20000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Chinese special wavelength LED manufacturer offer T1 3/4 5mm 500nm 510nm 520nm 530nm 540nm 550nm Green color Dip LED with ROHS certification for Various Applications with ROHS certification

Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.

T1 3/4 Inch Green Dip LED with ROHS Certification Various Applications 5mm 500nm 510nm 520nm 530nm 540nm 550nm Series

Application:

1.Blood glucose test
2.endoscope
3.Gene testing

4.oxygen meter
5.Vein certification

Product Description

Item	Symbol	Value	Unit
DC forward current	I_F	20	mA
Pulse forward current	I_FP	100	mA
Power dissipation	P_D	60	mW
Operating temperature	T_opr	-20~+75	°C
Storage temperature	Y_stg	-30~+80	°C
Reverse voltage	V_R	5	V
Sold soldering temperature	T_sol	260°C/3Sec	---

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	2.4	2.6	2.8	V
DC reverse Current	I_R	V=5V	----	----	5	μA
wavelength	Wd	I=20mA	545	----	550	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	I_V	I=20mA	3000	----	5000	mcd
50%Power Angle	2θ1/2	I=20mA	----	35	----	deg

T1 3/4 Inch Green Dip LED with ROHS Certification Various Applications 5mm 500nm 510nm 520nm 530nm 540nm 550nm Series

Size drawing

T1 3/4 Inch Green Dip LED with ROHS Certification Various Applications 5mm 500nm 510nm 520nm 530nm 540nm 550nm Series

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
