Product Description
Product Description

 Special wavelength LED manufacturer offer  5W 680 685nm 690nm deep red high power LED module for   Phototherapy and grow light











Shenzhen Starsealand Opto Electronic Co.,LTD  deal with special wavelength  LEDs from 250nm to 4400nm, if you have any inquires please let me know .

5W 680nm 685nm 690nm deep red high power LED module









Product Description



Absolute Maximum Rating                  (Ta=25°C)

Item

Symbol

Value

Unit

DC forward current

IF

700

mA

Pulse forward current

IFP

1000

mA

Power dissipation

PD

4

W

Operating temperature

Topr

-20~+75

°C

Storage temperature

Ystg

-30~+80

°C

Reverse voltage

VR

5

V

Sold soldering temperature

Tsol

260°C/3Sec

---

Plus with Max 10ms, duty ratio max1/10



Initial Electrical/Optical Characteristics                                (Ta=25°C)

Item

Symbol

condition

Min

Type

Max

Unit

DC forward Voltage

VF

I=700mA

3.8

4.0

4.5

V

DC reverse Current

IR

V=5V

----

----

10

μA

Chromaticity coordinates*

λ

I=700mA

680

----

685

nm

Spectrum Radiation Bandwidth

Δλ

I=700mA

----

28

----

Nm

Luminous Intensity

IV

I=700mA

8

----

25

lm

50%Power Angle

2θ1/2

I=700mA

----

120

----

deg





Applications


1, Growth  use

2, Medical use

3, Infrared Wireless Comminication fields

4, machine vision use

5, beauty use

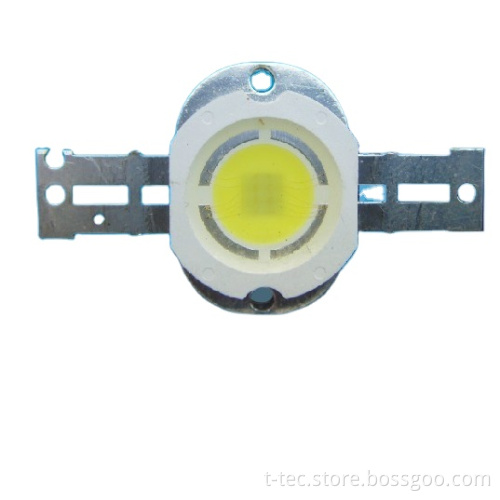

Appearance:



 5W 680nm 685nm 690nm deep red high power LED module



5W 680nm 685nm 690nm deep red high power LED module



Size drawing



5W 680nm 685nm 690nm deep red high power LED module
