Chinese Manufacturer Offers TO18 Near Infrared LEDs in 680nm to 710nm with Metal Shell

Chinese Manufacturer Offers TO18 Near Infrared LEDs in 680nm to 710nm with Metal Shell

$2.50

1-999 piece
$1.20

1000-4999 piece
$1.00

5000-19999 piece
$0.90

≥20000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Piece/Pieces per Month
Payment Type:	T/T
Port:	ShenZhen

Product Description

Chinese special wavelength manufacturer offer TO18 Size 680nm Dip near infrared led diode With Metal Shell

Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.

Chinese special wavelength manufacturer offer TO18 Size 680nm 690nm 700nm 710nm Dip near infrared led diode With Metal Shell

Product Description

1.675-680-685nm
2.red color
3. metallic packaging

4.volt: 1.8-2.3V 20MA

Applications:

1. Oxygen meter
2.Gene testing device
3.Motion capture
4.Iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.Encoder
9.Appearance inspection
11.Solar simulation
12.Photo therapy

13.PCB mounted infrared sensor

14.Infrared remote control units with high power requirement

15.Scanner

16Infrared applied system

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	1.8	----	2.3	V
DC reverse Current	IR	V=5V	----	----	10	μA
Chromaticity coordinates*	λ	I=20mA	675	680	685	nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	IV	I=20mA	400	----	800	Mcd
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg

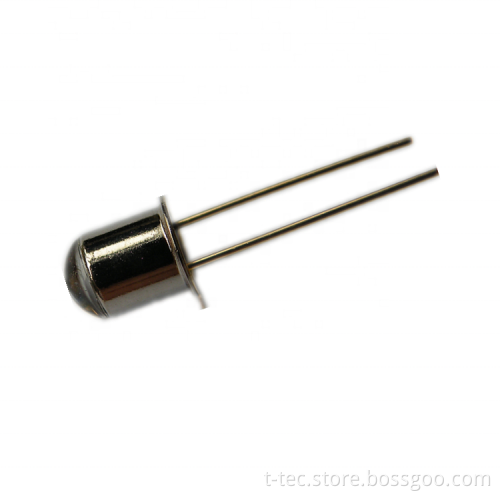

appearance

Chinese special wavelength manufacturer offer TO18 Size 680nm 690nm 700nm 710nm Dip near infrared led diode With Metal Shell

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
