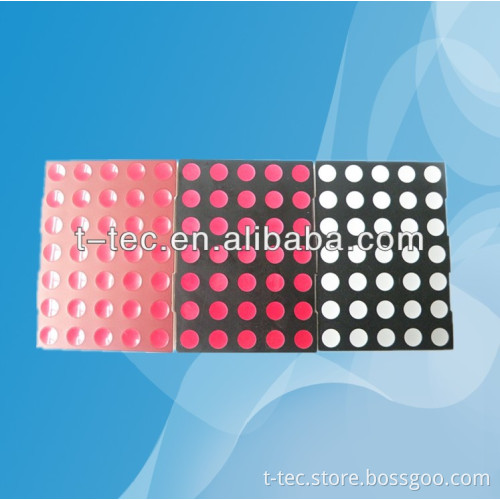

2.09" 5x7 Red LED dot-matrix

Specifications Red color 5x7 LED dot-matrix

1.9/3/5/7.6/10mm dot

color:RGB/bi-color R/W/G/Y/B..

5x5 ,5x7 ,5x8,8x8,16x16 array

Red color 2.09" 5x7 dot matrix display    Features : Industrial standard size. Low power consumption.  Categorized for luminous intensity.  Pb free The product itself will remain within RoHS compliant versio   Applications :  Audio equipment  Instrument panels  Digital read out display  indoor  display

Emitting Color		Dice Material	Peak Wave Length		Spectral Line	Forward Voltage(VF)		Luminous
								Intensity
					halfwidth	Unit:V		(Iv)	Unit:mcd
			(λP)		λ1/2)	Min	Max
R	Red	AlGaInP	632nm		16nm	1.9	2.2	2	22
YG	YG	AlGaInP	570nm		20nm	1.9	2.2	2	35
G	Green	AlGaInP	520nm		30nm	3	3.4	3.2	280
B	Blue	AlGaInP	465nm		30nm	3	3.4	3.2	70
W	White	AlGaInP	X	0.28	30nm	3	3.4	3.2	40
			Y	0.29
Y	Yellow	AlGaInP	590nm		20nm	1.9	2.4	1.9	30
A	Amber	AlGaInP	620nm		20nm	1.9	2.2	2	70
O	Orange	AlGaInP	600nm		20nm	1.9	2.2	2	50

  Package dimesions:  Internal circuit diagram:
