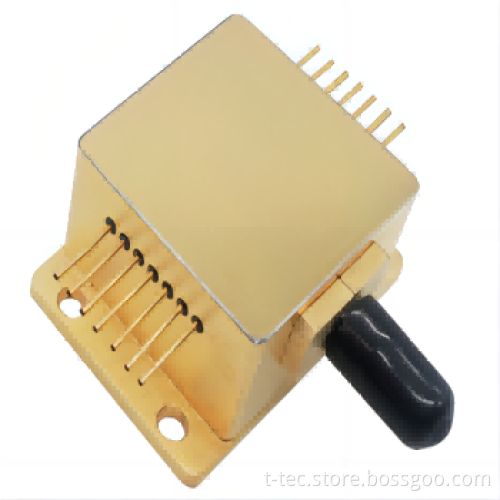

14HHL10W 1064nm Laser Diode Components Module

Package Type

14H HL

Item

unit

amout

Center Wavelength( nm)

1064

Optical

CW Output Power / Pop

W

1064

Wavelength Tolerance

nm

±3 , ±10

Spectral Width / λ

nm

<4

Temperature Drift of Wavelength / λ/T

nm/℃

0.3

Aiming Beam

Output Power / Pa

mW

2

Wavelength / λa

nm

650±10

Voltage / Va

V

2.2 ,5.0

Electrical

Threshold Current / Ith

A

1

Operating Current / Iop

A

23.5

Operating Voltage / Vop

V

2

Slope Efficiency / ηes

W/A

0.9

PD Parameter / Ipd

μA

<3000

Thermistor / Rt (kΩ/β (25℃))

10±1%/3450

TEC Max Current Imax

A

6

TEC Max Voltage Vmax

V

9.8

Fiber

Fiber Core/Cladding Diameter Dcore

μm

105/125 ,200/220

Fiber Length / L

cm

100±10( customizable)

Numerical Aperture / NA

0.22

Connector

SMA905
