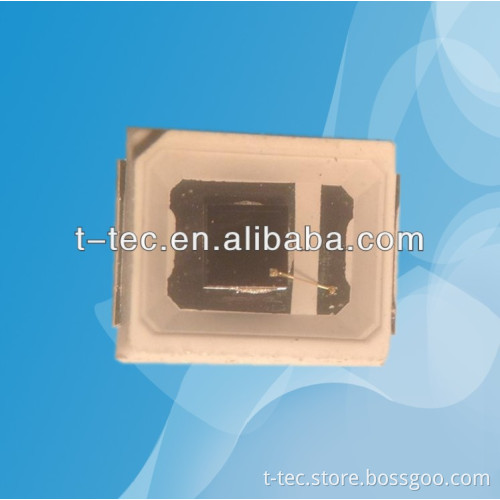

3528 SMD PLCC2 photo diode

  3528  SMD PLCC2 photo diode       Feature                                  1.Medium beam angle (±60°) 2.top looking package 3.Capable of pulse operation 5.Low profile 6.Low cost           Applications  1.Remote control sensors 2.Card readers 3.Optical switches 4.High speed photo detector 5.VCRs , Video camera             Initial Electrical/Optical Characteristics                                (Ta=25°C)

Parameter	Symbol	Testing Conditions	MIN	TYP	MAX	Unit
Rang of Spectral Bandwidth	λ0.5		850		1100	nm
Wavelength of Peak Sensitivity	λp			940	100	nm
Open-Circuit Voltage	VOC	Ee=5m W/cm2 λp=940nm		0.35		V
Short- Circuit Current	ISC	Ee=1m W/cm2 λp=940nm		18		uA
Reverse Light Current	Il	Ee=1m W/cm2 λp=940nm VR=5V	10	18		uA
Rise/Fall Time	tr/tf	VR=10V  RL=1KΩ		50/50		nS
Total Capacitance	Ct	Ee=0m W/cm2 VR=3V f=1MHZ		25		pF
Dark Current	Id	Ee=0m W/cm2 VR=10V		5	30	nA
Reverse Breakdown	BVR	Ee=0m W/cm2 IR=100μA	32	170		V

        Package size :
