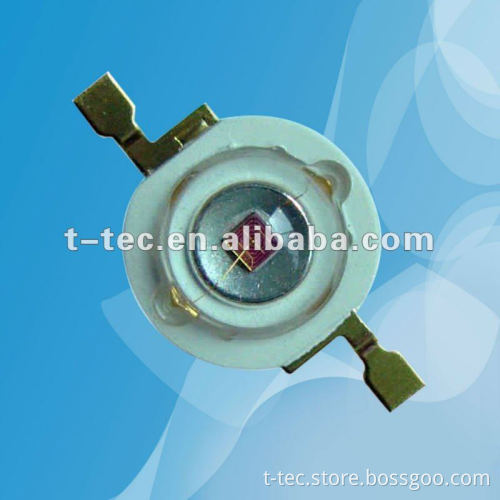

1w 730nm infared high power diode

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

1w 730nm infared high power diode Applications 1.Plant grow light 2.Medical equipment 3. specail Light sources 4, visual light source Package size:

Absolute Maximum Rating (Ta=25°C)

Plus with Max 10ms,duty ratio max1/10 n Initial Electrical/Optical Characteristics (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=350mA	1.7	1.8	2.1	V
DC reverse Current	IR	V=5V	----	----	10	μA
Chromaticity coordinates*	λ	I=350mA	720	730	740	nm
Spectrum Radiation Bandwidth	Δλ	I=350mA	----	28	----	Nm
Luminous Intensity	IV	I=350mA	15		22	mW
50%Power Angle	2θ1/2	I=350mA	----	120	----	deg
