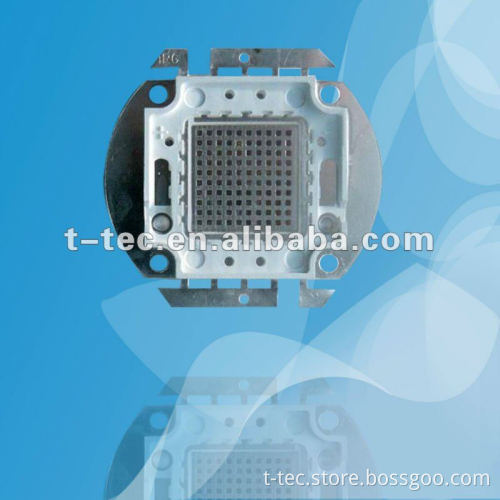

100w 910nm infrared power LED moudle

Specifications 100w 9100nm infrared power LED moudle

high power ,

100w  910nm  infrared  power LED moudle       Absolute Maximum Rating                 (Ta=25°C)

Item	Symbol	Value	Unit
DC forward current	IF	3.5	A
Pulse forward current*1	IFP	10	A
Power dissipation	PD	100(max at 7A)	W
Operating temperature	Topr	-20~+75	°C
Storage temperature	Ystg	-30~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec(*1)	---

(*1)Plus with Max 10ms,duty ratio max1/10       n         Initial Electrical/Optical Characteristics                               (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=3.5A	13	14	16	V
DC reverse Current	IR	V=50V	----	----	100	μA
Peak wavelength	λ	I=3.5A		910		nm
Spectrum Radiation Bandwidth	Δλ	I=3.5A	----	60	----	Nm
Radiant power2	Φe	I=3.5A		2.25		w
Radiant power2	Φe	I=7A		5.5		w
50%Power Angle	2θ1/2	I=3.5A	----	120	----	deg
Switching time	tr, tf	I=3.5A		20		ns

2Measured on epoxy covered chip glued on a 22*50 *5mm Aluminum hotsink with fan in SEALAND equipment (for information only)             Package Dimensions:                       Notes: 1. All dimension units are millimeters. 2. All dimension tolerance is ±0.2mm unless otherwise noted.
