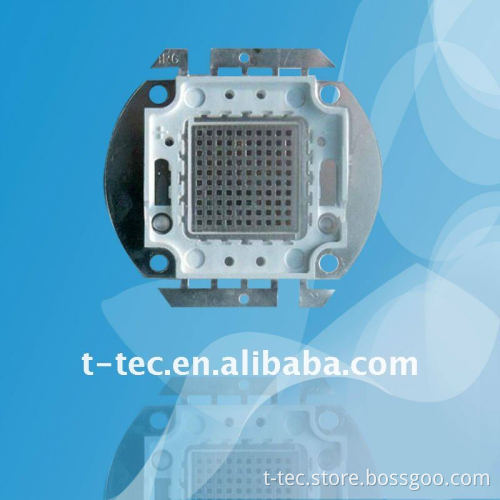

100W 400nm UV High power led

Specifications 100w high power LED for Curing machine

1.ESD protection

2.RoHs complaint

3.UV

Details products Description:  30W high power LED 1)      Model:XL100WP100UVC400 2)      ESD protection 3)      RoHs complaint 4)      Life: up to 20,000h 5)      Warranty: 3 years 6)      Viewing angle: 160 degree 7)      Color:UV         Initial Electrical/Optical Characteristics                                (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=3.5A	32	35	40	V
DC reverse Current	IR	V=50V	----	----	100	μA
Chromaticity coordinates*	λ	I=3.5A	400		405	nm
Spectrum Radiation Bandwidth	Δλ	I=3.5A	----	13	----	Nm
Luminous Intensity	IV	I=3.5A	300	----	9000	mW
50%Power Angle	2θ1/2	I=3.5A	----	120	----	deg
