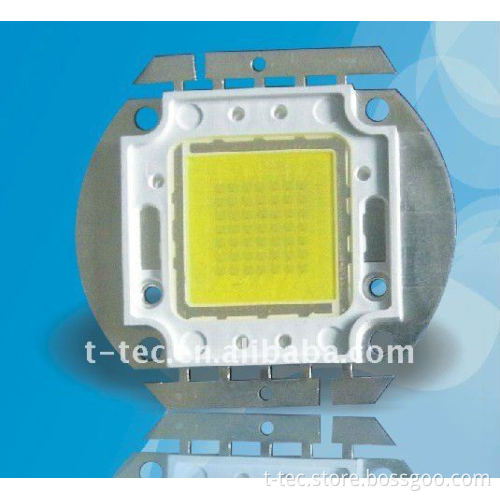

100w white module power LED
  • 100w white module power LED
100w white module power LED

100w white module power LED

Delivery Time:
20 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
Specifications 100w white module power LED,want to knon more ,please contact us

              Absolute Maximum Rating                  (Ta=25°C)

Item

Symbol

Value

Unit

DC forward current

IF

3.5

A

Pulse forward current

IFP

10

A

Power dissipation

PD

100

W

Operating temperature

Topr

-20~+75

°C

Storage temperature

Ystg

-30~+80

°C

Reverse voltage

VR

50

V

Sold soldering temperature

Tsol

260°C/3Sec

---

Plus with Max 10ms,duty ratio max1/10   n         Initial Electrical/Optical Characteristics                                (Ta=25°C)

Item

Symbol

condition

Min

Type

Max

Unit

DC forward Voltage

VF

I=3.5A

32

35

36

V

DC reverse Current

IR

V=50V

----

----

10

μA

Chromaticity coordinates*

λ

I=3.5A

520



525

nM

Spectrum Radiation Bandwidth

Δλ

I=3.5A

----

28

----

Nm

Luminous Intensity

IV

I=3.5A

6000

----

8000

LM

Color  temperature

Tc

I=3.5A







K

Thermal resistance junction to  board







10



°C/w

50%Power Angle

2θ1/2

I=3.5A

----

120

----

deg
