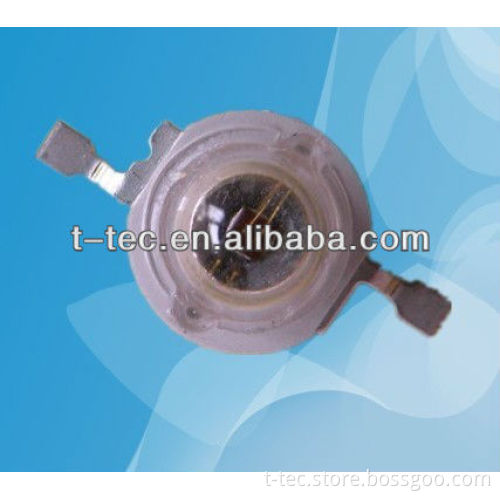

1W 870-880nm IR high power led

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

1W 870-880nm IR high power led Absolute Maximum Rating (Ta=25°C)

Item	Symbol	Value	Unit
DC forward current	IF	350	mA
Pulse forward current	IFP	1000	mA
Power dissipation	PD	700	mW
Operating temperature	Topr	-20~+75	°C
Storage temperature	Ystg	-30~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---

Initial Electrical/Optical Characteristics (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=350mA	1.5	1.7	1.9	V
DC reverse Current	IR	V=5V	----	----	100	μA
Peak wavelength	λ	I=350mA	870	----	880	nm
Spectrum Radiation Bandwidth	Δλ	I=350mA	----	45	----	Nm
Radiant power	IV	I=350mA	60	70	80	mw
50%Power Angle	2θ1/2	I=350mA	----	120	----	deg
Switching time	tr, tf	I=350mA		10/25		ns

Applications: Plant grow light Disinfection and sterilizer optical communications, light barriers, measurement systems Medical appliances, remote control
