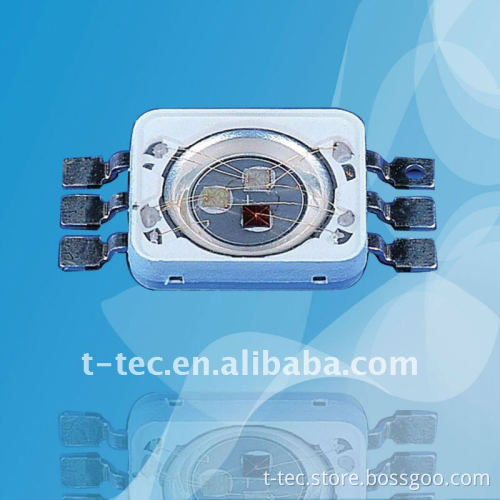

3w RGB high power led

Specifications 1),with 3pcs 1W chips

2),high brightness

3),5000hours life

  Absolute Maximum Rating                  (Ta=25°C)

Item	Symbol	Value			Unit
		R	G	B
DC forward current	IF	350			mA
Pulse forward current	IFP	1000			mA
Power dissipation	PD	0.77	1.2	1.2	W
Operating temperature	Topr	-20~+75			°C
Storage temperature	Ystg	-30~+80			°C
Reverse voltage	VR	5			V
Sold soldering temperature(*1)	Tsol	260°C/3Sec			---

(*1)SMT solder ability only for Silicone materials len,   if  pc len  Manual welding get better (*2)Plus with Max 10ms,duty ratio max1/10   n         Initial Electrical/Optical Characteristics                                (Ta=25°C)

Item	Symbol		condition	Min	Type	Max	Unit
DC forward Voltage	VF	R	I=350mA	2.1	2.2	2.5	V
		G		3.1	3.4	3.8
		B		3.1	3.4	3.8
DC reverse Current	IR		V=5V	----	----	10	μA
Chromaticity coordinates*	λ	R	I=350mA	622	624	628	nM
		G		515	523	528
		B		460	465	470
Spectrum Radiation Bandwidth	Δλ		I=350mA	----	28	----	Nm
Luminous Intensity	IV	R	I=350mA	10	----	35	LM
		G		25		50
		B		7		18
Color  temperature	Tc		I=350mA	5000	6500	8000	°C
50%Power Angle	2θ1/2		I=350mA	----	120	----	deg

  NOTES: ²       Absolute maximum  ratings  Ta=25°C ²       Tolerance of measurement of forward voltage ±0.1V ²       Tolerance of measurement of peak Wavelength  ±2.0Nm ²        Tolerance of measurement of luminous intensity ±15
