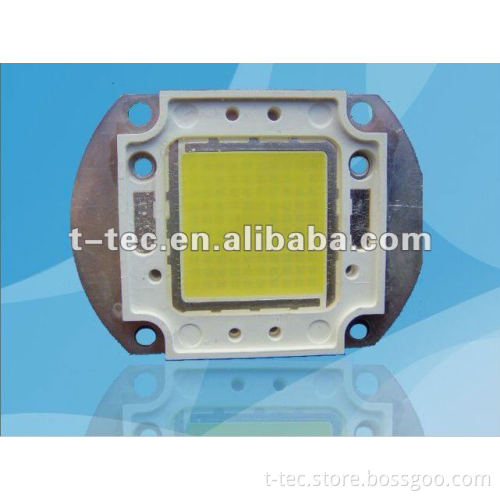

High Power White Led (cool white/ pure white /warm white ) 100W

Specifications 100W High Power White Led cool white pure white warm white



Parameter	Symbol	Value			Unit
		Min	Typ	Max
Luminous Flux [1]	V [2]	8500	10000	11000	lm
Correlated Color Temperature [3]	CCT	2500	5000	8000	K
CRI	Ra	75	85	-	-
Forward Voltage [4]	VF	30	34	38	V
View Angle	2Θ1/2	170			deg.
Thermal resistance [5]	RθJ-B	10.5			ºC /W
Thermal resistance [6]	RθJ-C	9.0			ºC /W



Parameter	Symbol	Value	Unit
Forward Current	IF	3000	mA
Power Dissipation	PD	100	W
Junction Temperature	Tj	TBD	ºC
Operating Temperature	Topr	-30 ~ +85	ºC
Storage  Temperature	Tstg	-40 ~ +100	ºC
ESD Sensitivity [7]	-	±20, 000V HBM	-

      Feature
• Super high Flux output and high Luminance
• Designed for high current operation
• Low thermal resistance
• SMT solderbility
• Lead Free product
• RoHS compliant

Applications
• Automotive interior / exterior lighting
• Automotive signal lighting
• Automotive forward lighting
• General Torch
• Architectural lighting
• LCD TV / Monitor Backlight
• Projector light source
• Traffic signals
• Task lighting
• Decorative  / Pathway lighting
• Remote / Solar powered lighting
• Household appliances
    100W High Power White Led cool white pure white warm white
