1206 Package PLCC2 Surface Mount UV ULED (350nm-430nm)

1206 Package PLCC2 Surface Mount UV ULED (350nm-430nm)

$1.00

1-19999 piece
$0.16

20000-49999 piece
$0.12

50000-99999 piece
$0.10

≥100000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Chinese special wavelength Professional manufacturer offer 1206 package size PLCC2 420nm 425nm 430nm surface mount UVA LED

Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.

1206 package PLCC2 350nm 360nm 370nm 380nm 390nm 400nm 410nm 420nm 425nm 430nm surface mount UV UVA LED

Application:

1. sensor

2. medcial electronics

3.vision system lighting sources

4. Biological detection

Product Description

Parameter	Test conditions	Symbol	Min	Typ	Max	Unit
Forward voltage	IF = 20 mA	VF	3.1		3.4	v
Reverse voltage	IR = 100 μA	VR		5		v
Indensity	IF = 20 mA	Φe	80		150	mcd
Peak wavelength	IF = 20 mA	λp	420	425	405	nm
Spectral bandwidth at 50%	IF = 20 mA	Δλ0.5		30		nm
Viewing angle	IF = 20 mA	Φ		120		deg

Package size

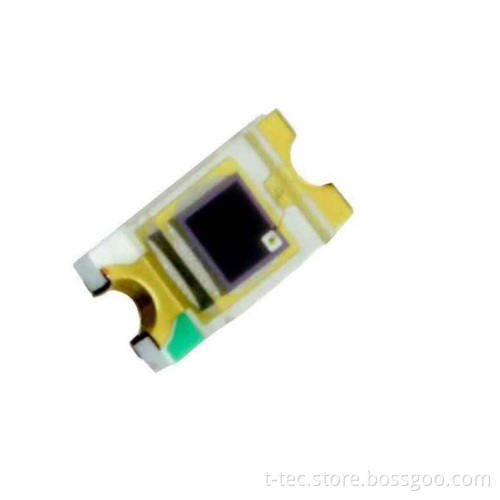

Appearance

1206 package PLCC2 350nm 360nm 370nm 380nm 390nm 400nm 410nm 420nm 425nm 430nm surface mount UV UVA LED
